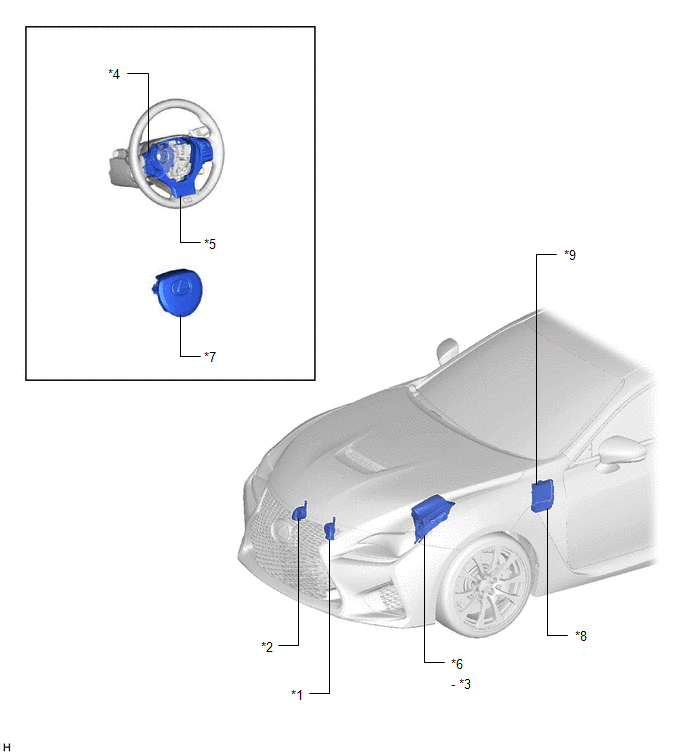

Parts Location [09/2014 - ]: Illustration
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LOW PITCHED HORN ASSEMBLY | *2 | HIGH PITCHED HORN ASSEMBLY |
| *3 | HORN RELAY | *4 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY |
| *5 | STEERING PAD SWITCH ASSEMBLY | *6 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - HORN FUSE |
| *7 | HORN BUTTON ASSEMBLY | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | - | - |
