Parts Location [03/2019 - 11/2021]: Illustration

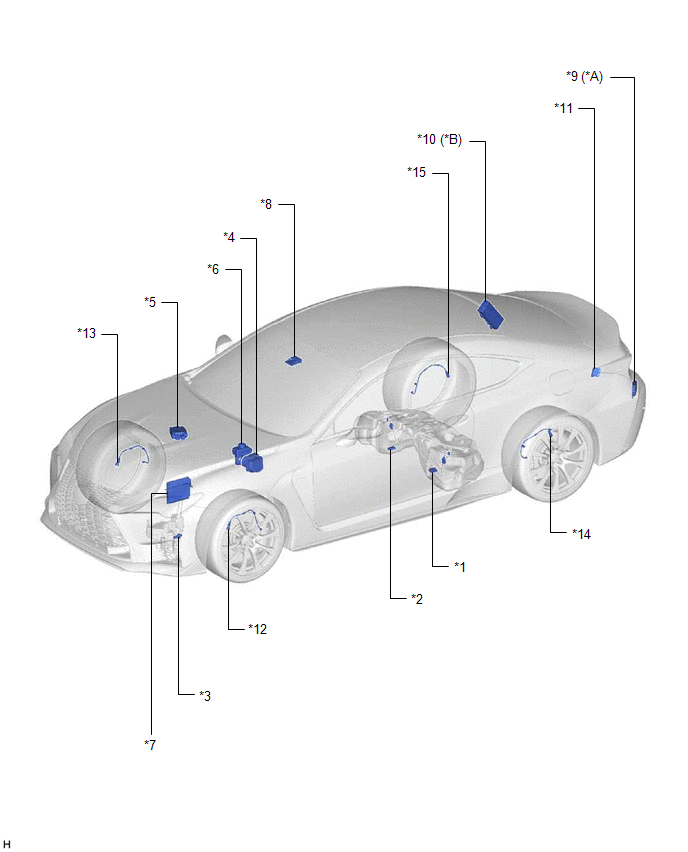

| *A | w/ Blind Spot Monitor System | *B | w/ Torque Vectoring Differential System |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | NO. 2 FUEL SENDER GAUGE ASSEMBLY |
| *3 | LEVEL WARNING SWITCH ASSEMBLY | *4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *5 | POWER STEERING ECU ASSEMBLY | *6 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
| *7 | ECM | *8 | FORWARD RECOGNITION CAMERA |
| *9 | BLIND SPOT MONITOR SENSOR LH | *10 | TORQUE VECTORING DIFFERENTIAL ECU ASSEMBLY |
| *11 | SPOILER CONTROL ECU ASSEMBLY | *12 | FRONT PAD WEAR INDICATOR WIRE ASSEMBLY LH |
| *13 | FRONT PAD WEAR INDICATOR WIRE ASSEMBLY RH | *14 | PAD WEAR INDICATOR WIRE ASSEMBLY LH |
| *15 | PAD WEAR INDICATOR WIRE ASSEMBLY RH | - | - |

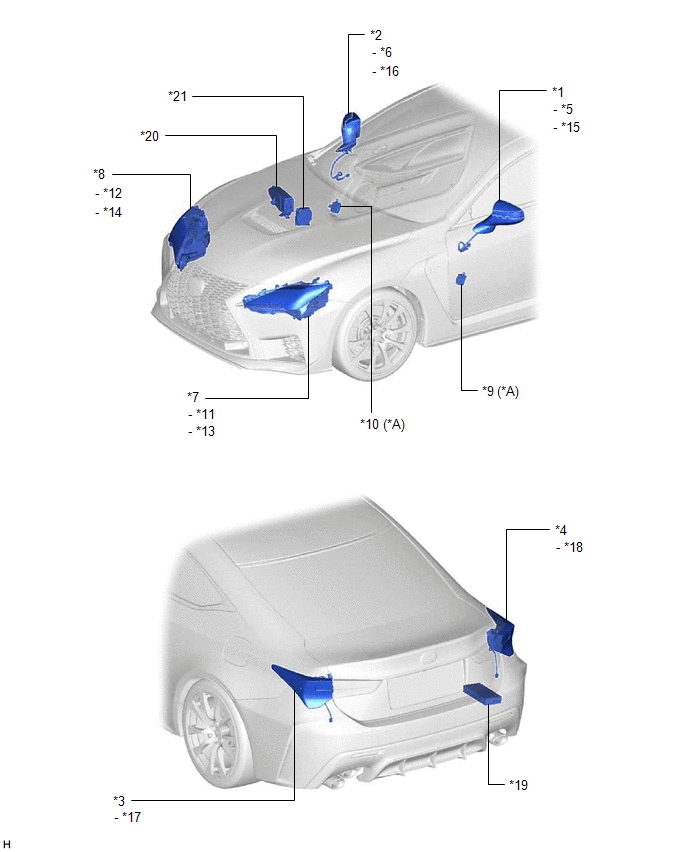

| *A | w/ Seat Position Memory System | - | - |
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *3 | REAR COMBINATION LIGHT ASSEMBLY LH | *4 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *5 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *6 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *7 | HEADLIGHT ASSEMBLY LH | *8 | HEADLIGHT ASSEMBLY RH |
| *9 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *10 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *11 | HEADLIGHT ECU SUB-ASSEMBLY LH | *12 | HEADLIGHT ECU SUB-ASSEMBLY RH |
| *13 | HEADLIGHT UNIT ASSEMBLY LH | *14 | HEADLIGHT UNIT ASSEMBLY RH |
| *15 | OUTER MIRROR ACTUATOR ASSEMBLY LH | *16 | OUTER MIRROR ACTUATOR ASSEMBLY RH |
| *17 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH | *18 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH |
| *19 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *20 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *21 | ABSORBER CONTROL ECU | - | - |

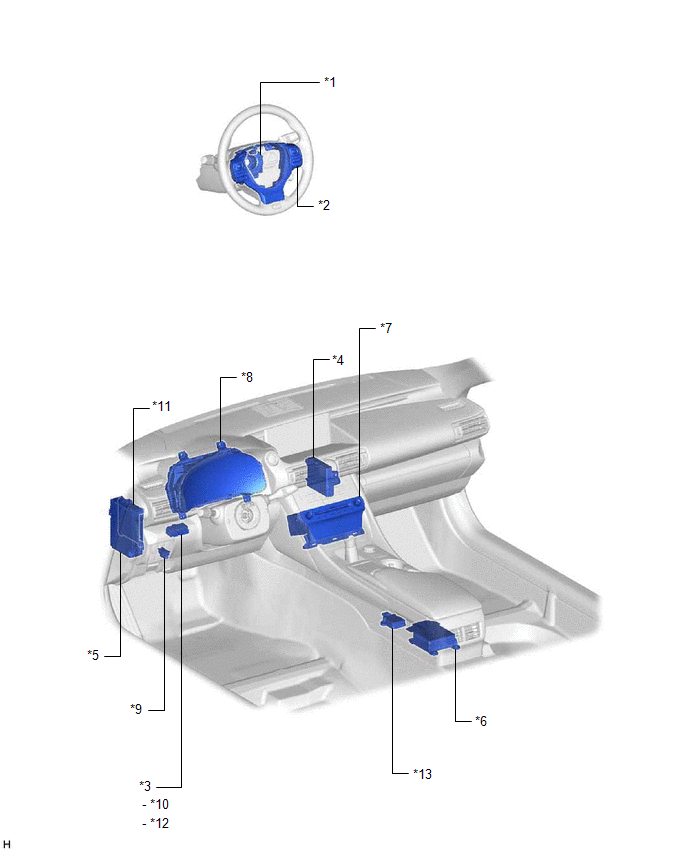

| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | TRIP SWITCH | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE - HAZ FUSE |
*6 | AIRBAG ECU ASSEMBLY |
| *7 | RADIO RECEIVER ASSEMBLY | *8 | COMBINATION METER ASSEMBLY |
| *9 | DLC3 | *10 | ODO/TRIP SWITCH |
| *11 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *12 | LIGHT CONTROL RHEOSTAT SWITCH |
| *13 | YAW RATE SENSOR | - | - |

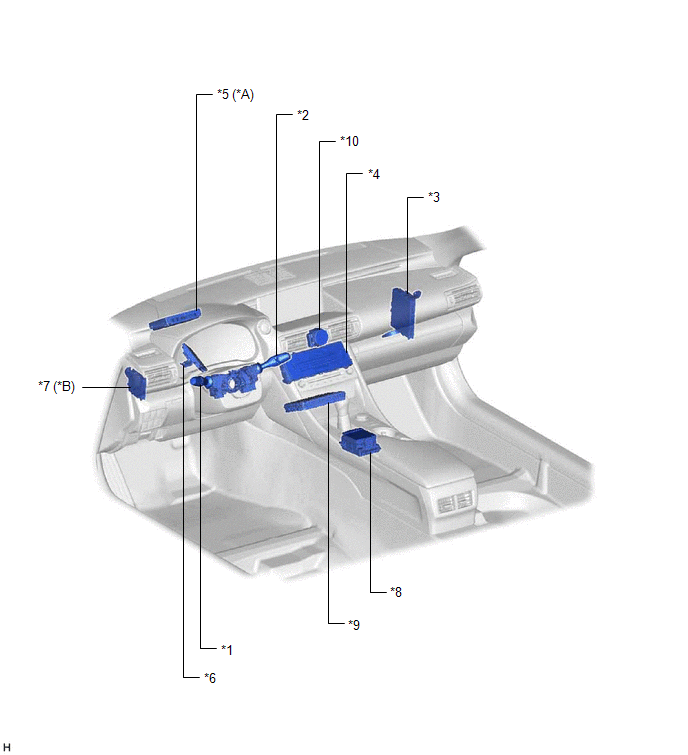

| *A | w/ Manual (SOS) Switch | *B | w/ Intuitive Parking Assist System |
| *1 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *2 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | AIR CONDITIONING CONTROL ASSEMBLY - HAZARD WARNING SIGNAL SWITCH |
| *5 | DCM (TELEMATICS TRANSCEIVER) | *6 | DRIVING SUPPORT ECU ASSEMBLY |
| *7 | CLEARANCE WARNING ECU ASSEMBLY | *8 | REMOTE TOUCH (REMOTE OPERATION CONTROLLER ASSEMBLY) |
| *9 | NAVIGATION ECU | *10 | CLOCK ASSEMBLY |

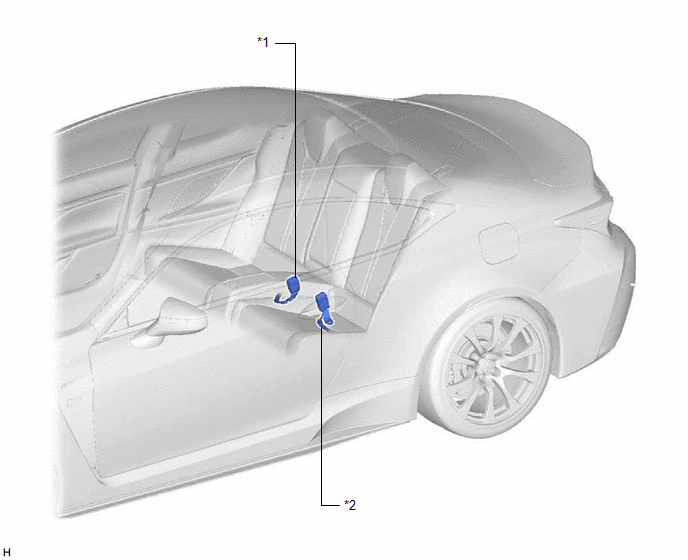

| *1 | REAR SEAT INNER BELT ASSEMBLY | *2 | NO. 1 REAR SEAT INNER BELT ASSEMBLY LH |
