Parts Location [09/2014 - 03/2019]: Illustration

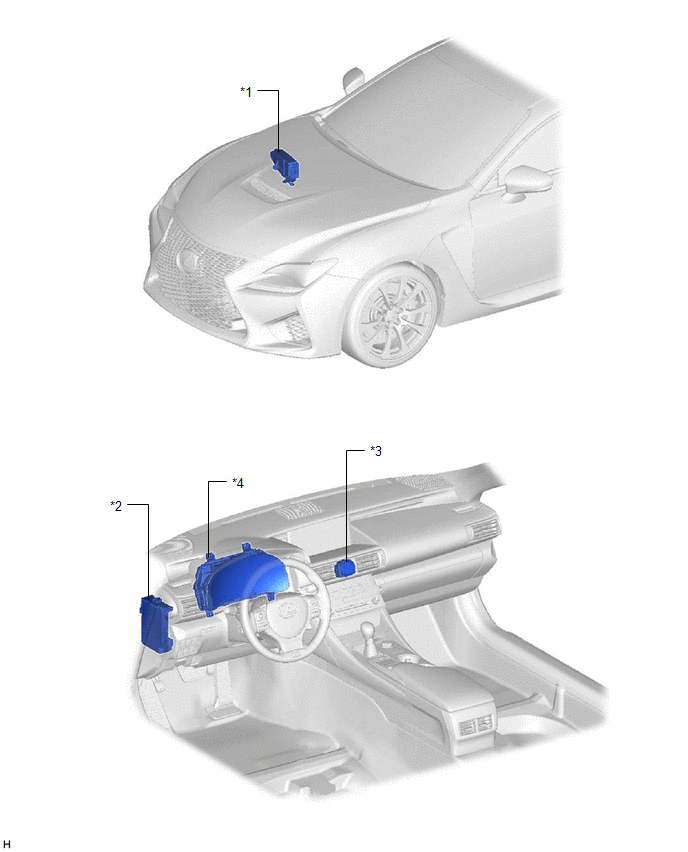

GTY497269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- MPX-B NO. 1 FUSE		 *2 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- PANEL FUSE
*3 CLOCK ASSEMBLY *4 COMBINATION METER ASSEMBLY
