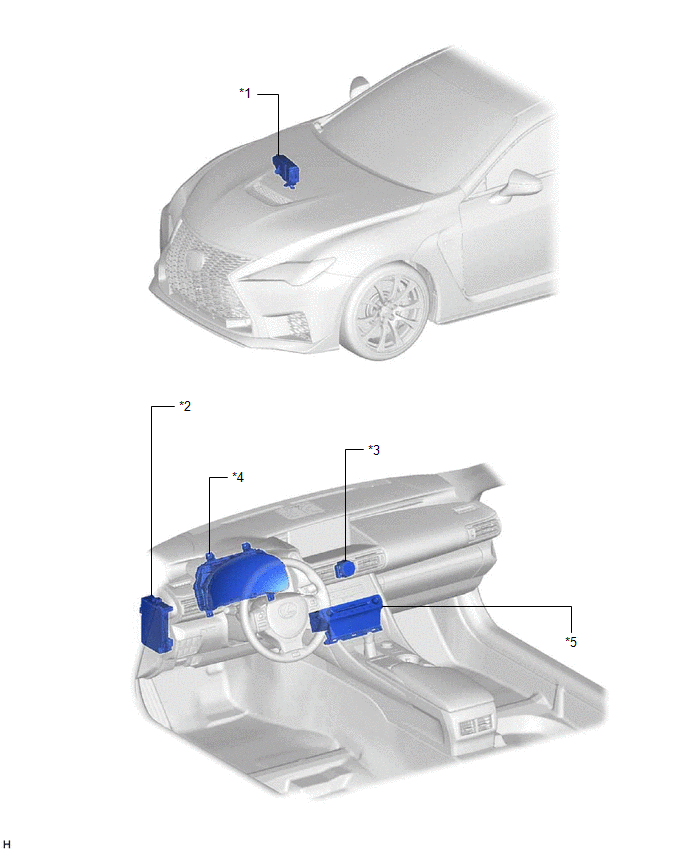

Parts Location [03/2019 - ]: Illustration

GTY961602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- MPX-B NO. 1 FUSE		 *2 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- PANEL FUSE
*3 CLOCK ASSEMBLY *4 COMBINATION METER ASSEMBLY
*5 RADIO RECEIVER ASSEMBLY - -
