Parts Location [01/2023 - ]: Illustration

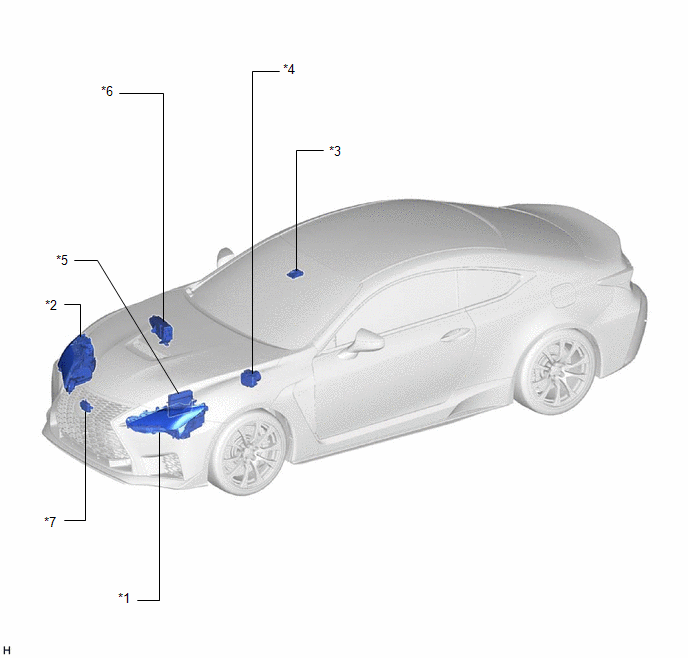

Fig 1: Automatic High Beam System Components Location (1 Of 2) [01/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADLIGHT ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY LH	*2	HEADLIGHT ASSEMBLY RH - HEADLIGHT ECU SUB-ASSEMBLY RH
*3	FORWARD RECOGNITION CAMERA	*4	BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)
*5	ECM	*6	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP LH RELAY - H-LP RH RELAY - H-LP MAIN LH FUSE - H-LP MAIN RH FUSE
*7	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	-	-

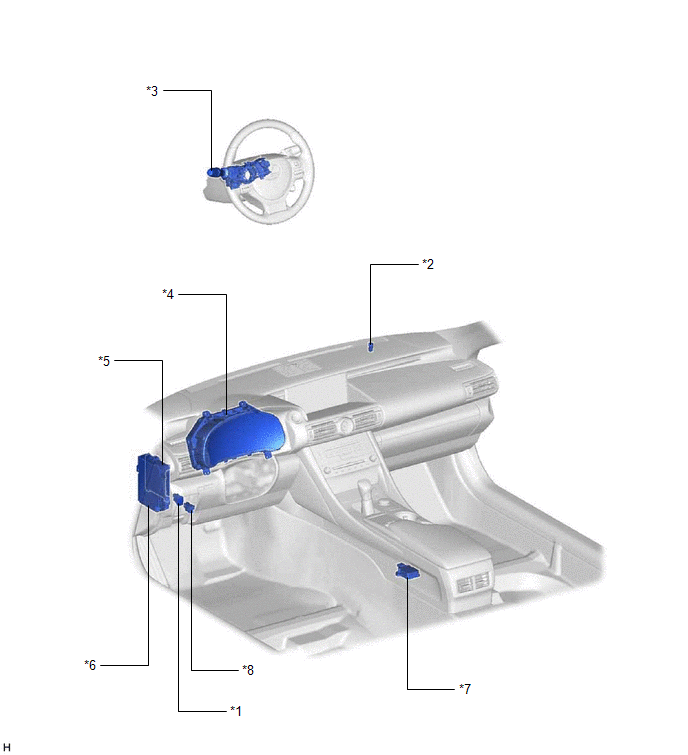

Fig 1: Automatic High Beam System Components Location (2 Of 2) [01/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AUTO HIGH BEAM SWITCH	*2	AUTOMATIC LIGHT CONTROL SENSOR
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY	*4	COMBINATION METER ASSEMBLY
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE
*7	YAW RATE SENSOR	*8	DLC3
