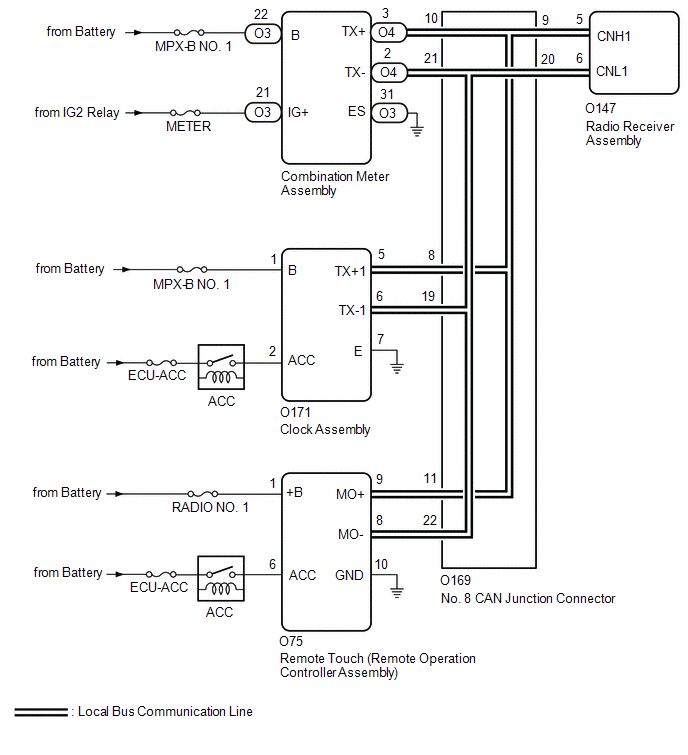

DTC B1323: Lost Communication with Haptic Device; DTC B1324: Lost Communication with Meter; DTC B1326: Lost Communication with Clock Device (Local-CAN) [03/2019 - ]: Wiring Diagram

GTY960400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
