Parts Location [09/2014 - ]: Illustration

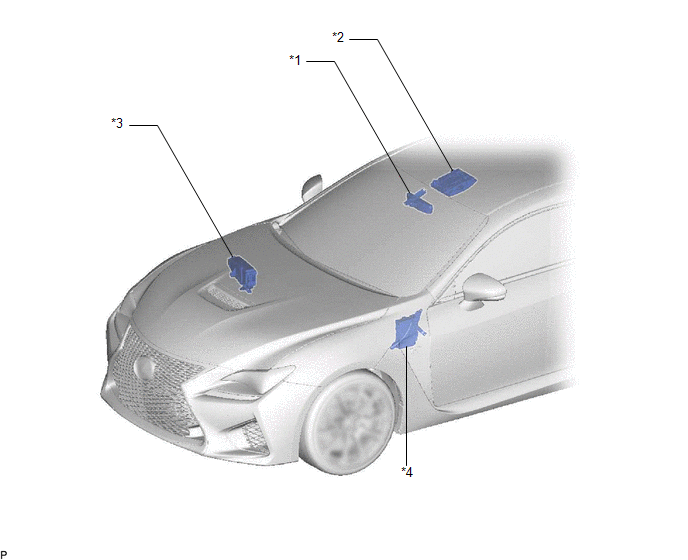

Fig 1: Garage Door Opener Components Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	INNER REAR VIEW MIRROR ASSEMBLY - GARAGE DOOR OPENER	*2	MAP LIGHT ASSEMBLY
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE
