System Diagram [08/2016 - 11/2017]

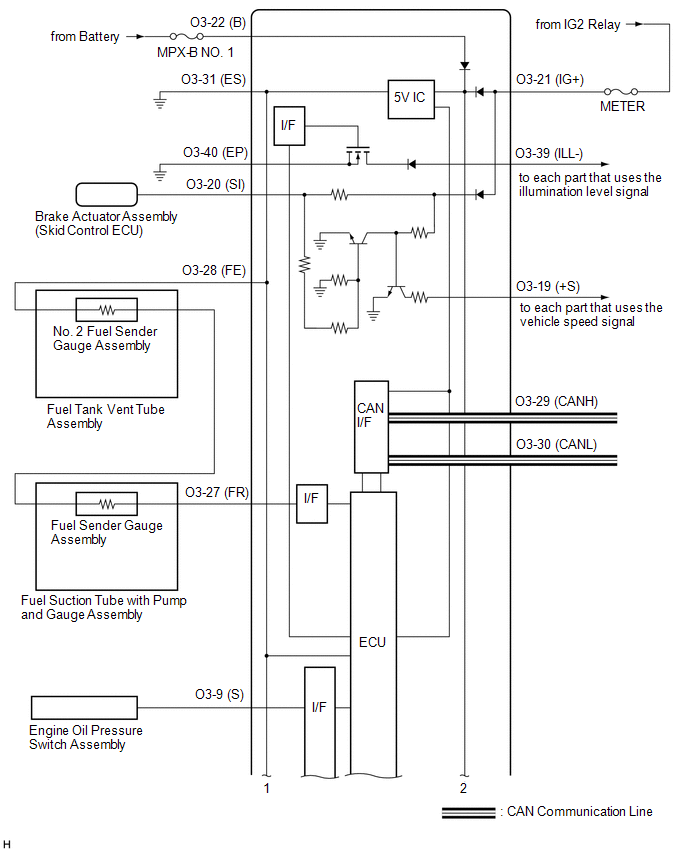

    Fig 1: Meter / Gauge System Diagram (1 Of 3)
    GTY513806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

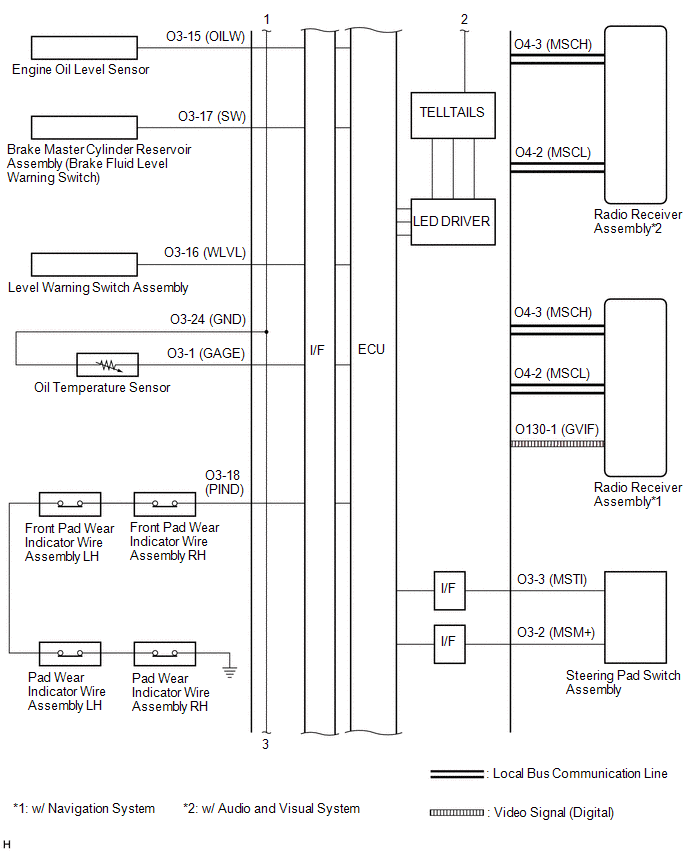

    Fig 2: Meter / Gauge System Diagram (2 Of 3)
    GTY509472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

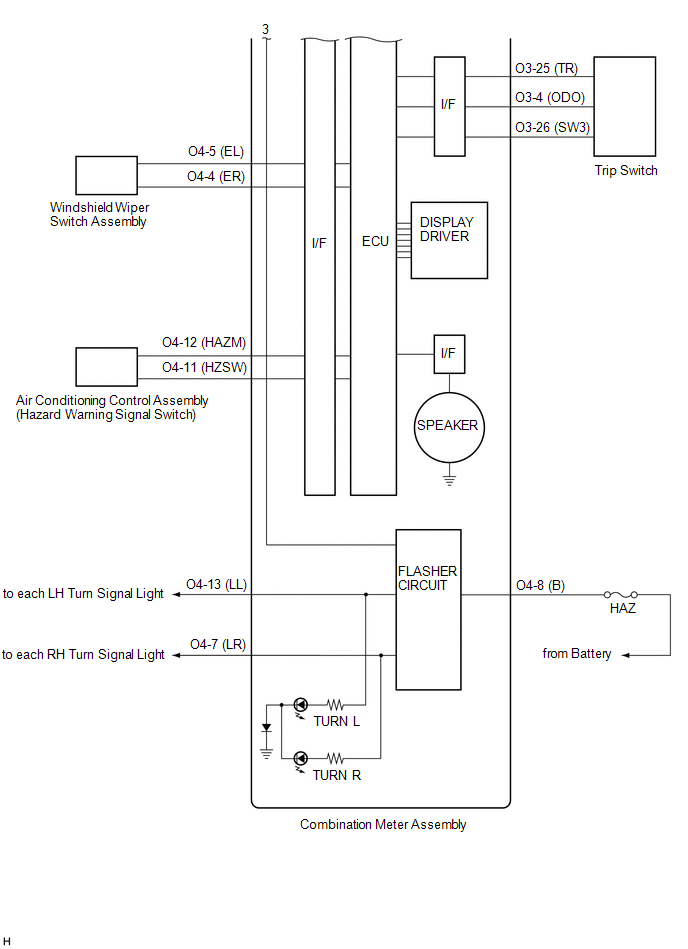

    Fig 3: Meter / Gauge System Diagram (3 Of 3)
    GTY622367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
