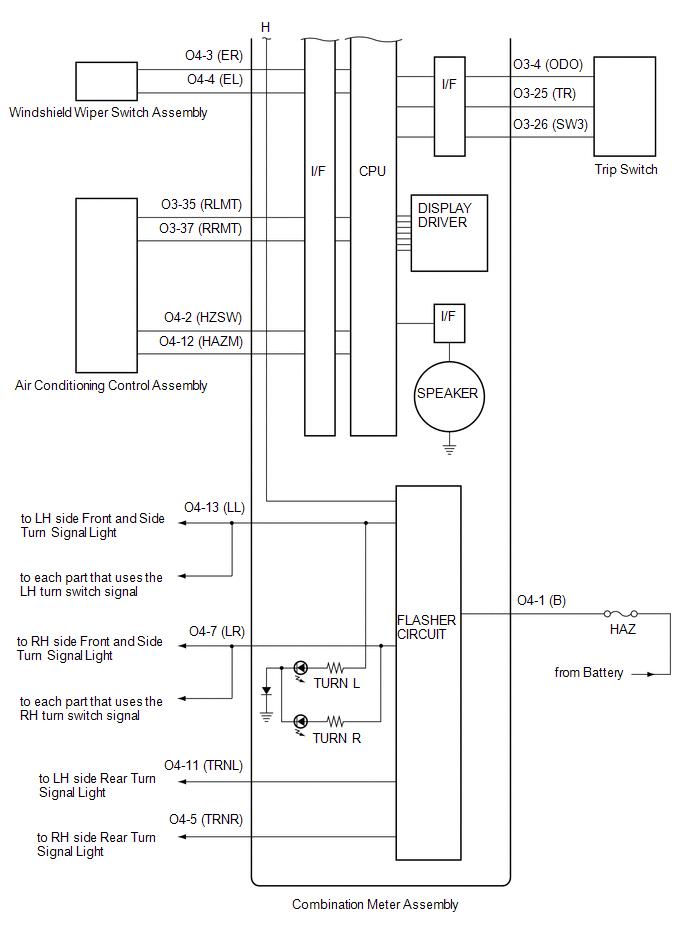

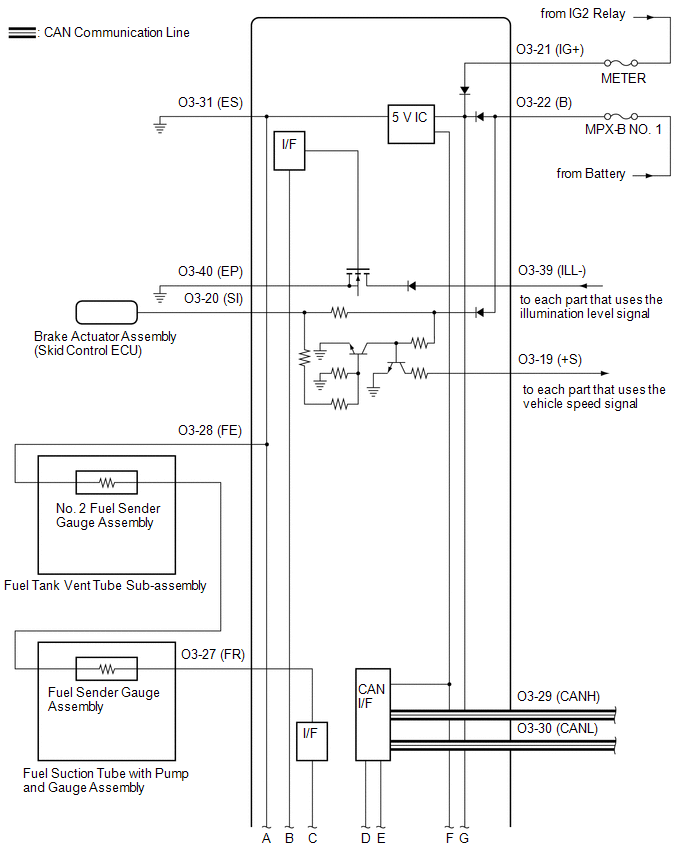

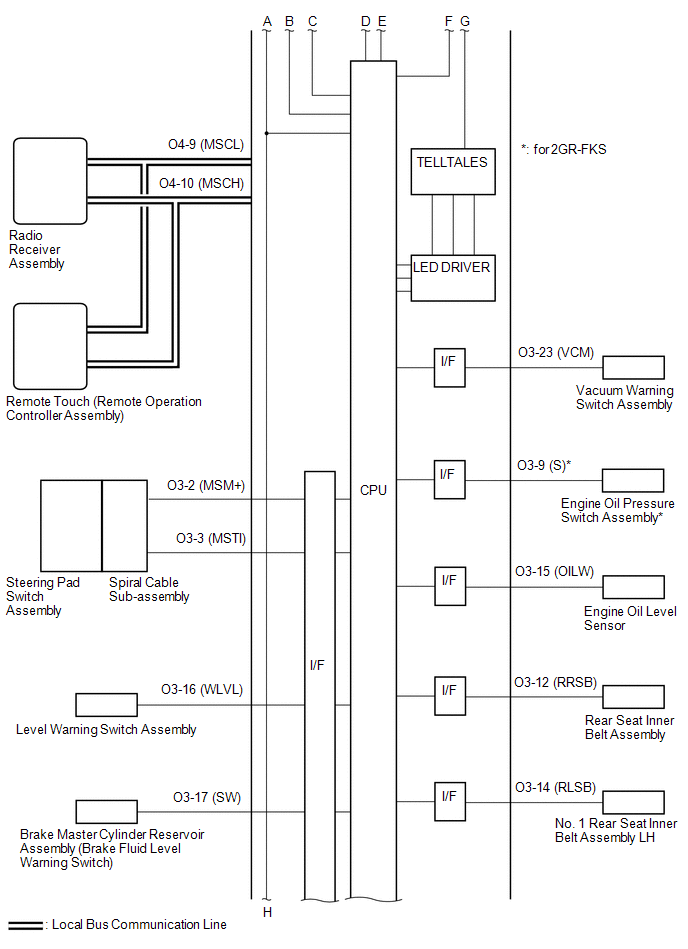

Home >> Lexus >> 2021 >> RC 350 Base, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge System - Diagnostics - Introduction (1 Of 8) >> Meter / Gauge System >> System Diagram [11/2017 - 10/2018] >> System Diagram [11/2017 - 10/2018]
