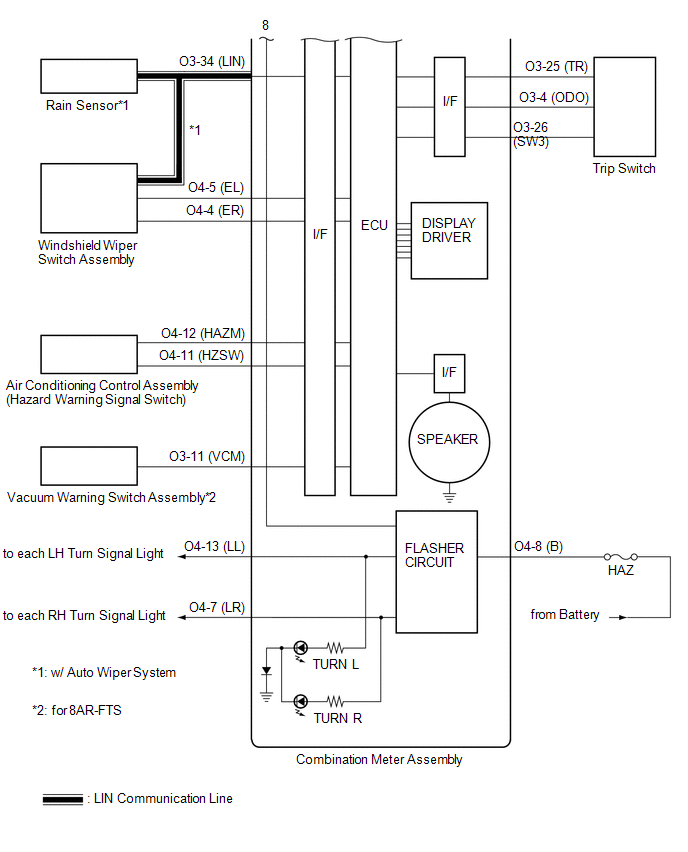

Home >> Lexus >> 2021 >> RC 350 Base, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge System - Diagnostics - Introduction (1 Of 8) >> Meter / Gauge System >> System Diagram [10/2015 - 08/2016] >> System Diagram [10/2015 - 08/2016]
