Parts Location [11/2017 - 10/2018]: Illustration

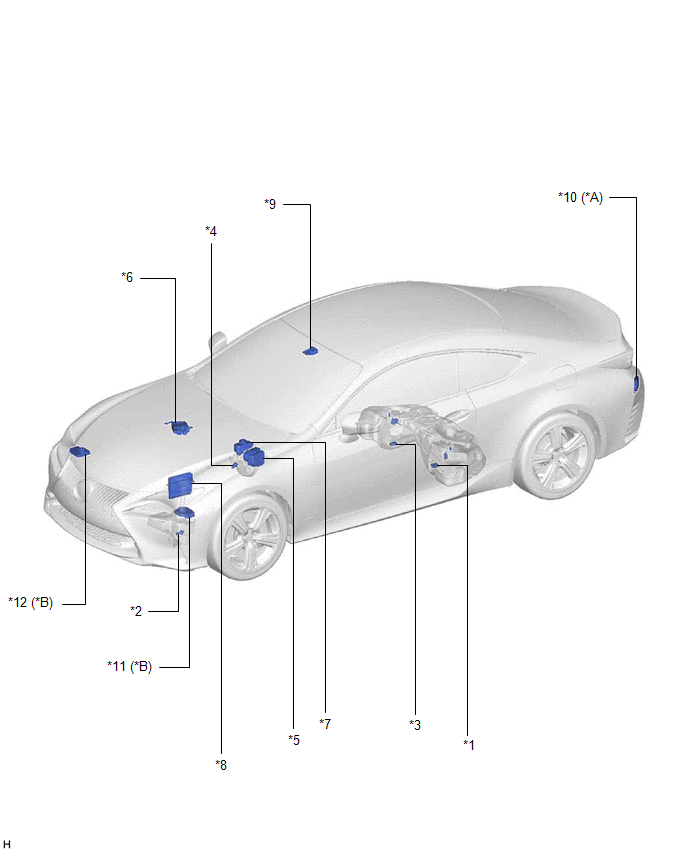

| *A | w/ Blind Spot Monitor System | *B | for Triple Beam Headlight |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | LEVEL WARNING SWITCH ASSEMBLY |
| *3 | NO. 2 FUEL SENDER GAUGE ASSEMBLY | *4 | VACUUM WARNING SWITCH ASSEMBLY |
| *5 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*6 | POWER STEERING ECU ASSEMBLY |
| *7 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*8 | ECM |
| *9 | FORWARD RECOGNITION CAMERA | *10 | BLIND SPOT MONITOR SENSOR LH |
| *11 | HEADLIGHT CONTROL ECU SUB-ASSEMBLY LH | *12 | HEADLIGHT CONTROL ECU SUB-ASSEMBLY RH |

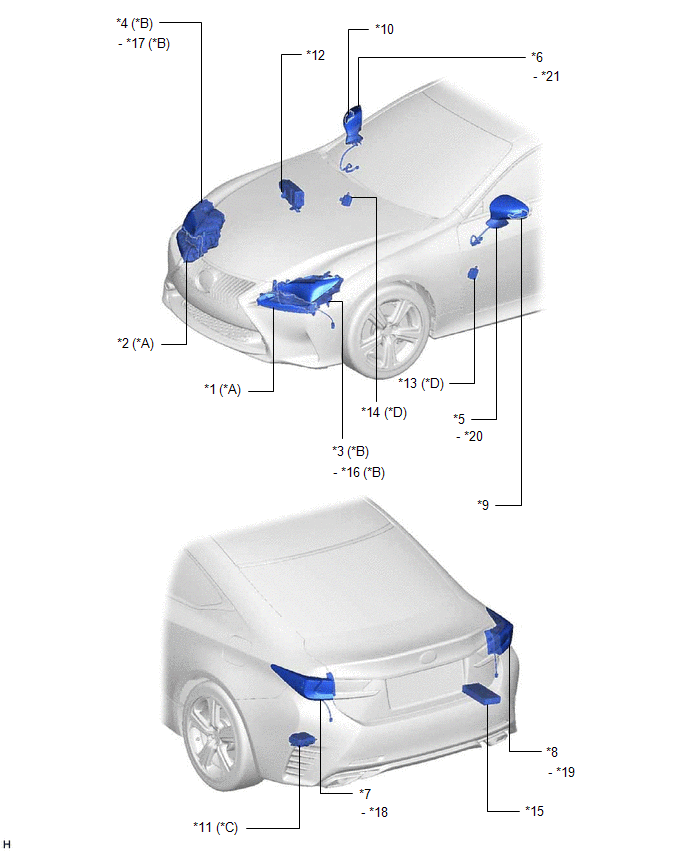

| *A | for Triple Beam Headlight | *B | for Single Beam Headlight |
| *C | w/ Dynamic Rear Steering System | *D | w/ Seat Position Memory System |
| *1 | CLEARANCE LIGHT ASSEMBLY LH | *2 | CLEARANCE LIGHT ASSEMBLY RH |
| *3 | HEADLIGHT ASSEMBLY LH | *4 | HEADLIGHT ASSEMBLY RH |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *6 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *7 | REAR COMBINATION LIGHT ASSEMBLY LH | *8 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *9 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *10 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *11 | DRS ECU (REAR STEERING CONTROL ECU) | *12 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE |
| *13 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *14 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *15 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *16 | HEADLIGHT CORD LH |
| *17 | HEADLIGHT CORD RH | *18 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH |
| *19 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH | *20 | OUTER MIRROR ACTUATOR ASSEMBLY LH |
| *21 | OUTER MIRROR ACTUATOR ASSEMBLY RH | - | - |

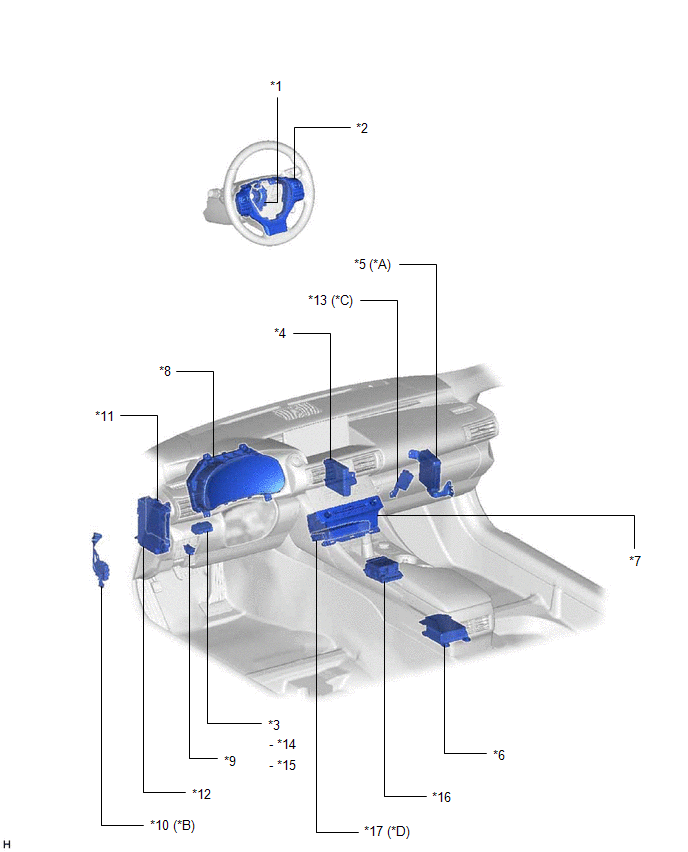

| *A | w/ Adaptive Variable Suspension System | *B | for Single Beam Headlight |
| *C | w/ Four Wheel Drive Control System | *D | w/ Navigation System |
| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | TRIP SWITCH | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | ABSORBER CONTROL ECU | *6 | AIRBAG ECU ASSEMBLY |
| *7 | RADIO RECEIVER ASSEMBLY | *8 | COMBINATION METER ASSEMBLY |
| *9 | DLC3 | *10 | HEADLIGHT LEVELING ECU ASSEMBLY |
| *11 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *12 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE - HAZ FUSE |
| *13 | 4WD CONTROL ECU | *14 | LIGHT CONTROL RHEOSTAT SWITCH |
| *15 | ODO/TRIP SWITCH | *16 | REMOTE TOUCH (REMOTE OPERATION CONTROLLER ASSEMBLY) |
| *17 | NAVIGATION ECU | - | - |

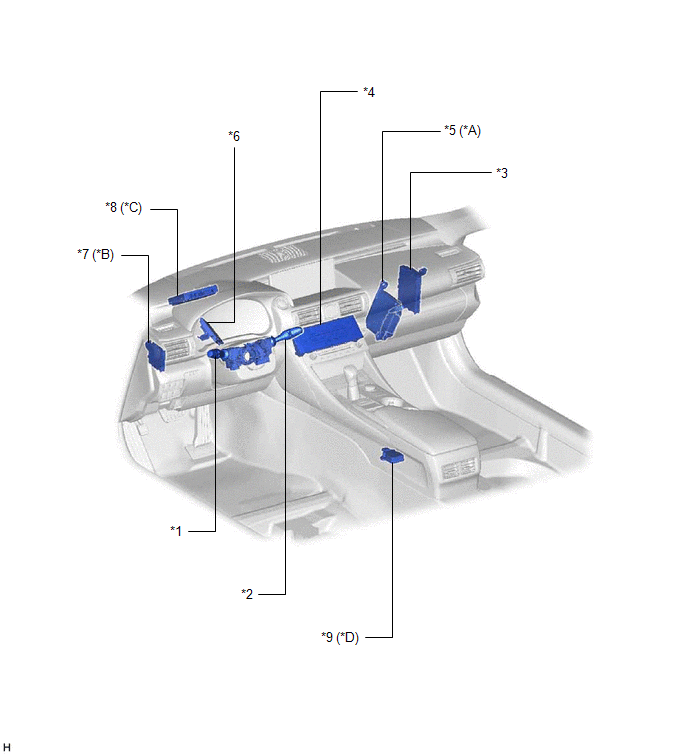

| *A | w/ Variable Gear Ratio Steering System | *B | w/ Intuitive Parking Assist System |
| *C | w/ Manual (SOS) Switch | *D | for TFT Meter Type |
| *1 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *2 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | AIR CONDITIONING CONTROL ASSEMBLY - HAZARD WARNING SIGNAL SWITCH |
| *5 | VGRS ECU (FRONT STEERING CONTROL ECU) | *6 | DRIVING SUPPORT ECU ASSEMBLY |
| *7 | CLEARANCE WARNING ECU ASSEMBLY | *8 | DCM (TELEMATICS TRANSCEIVER) |
| *9 | YAW RATE SENSOR | - | - |
