DTC B1507: Open in Turn Signal Circuit [11/2017 - 10/2018]: Wiring Diagram

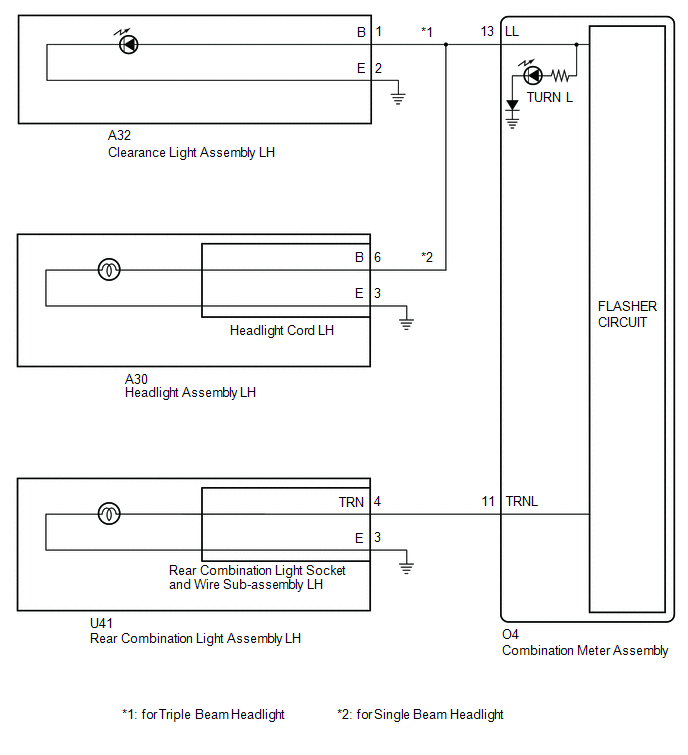

  1. FOR LH SIDE
    GTY837597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

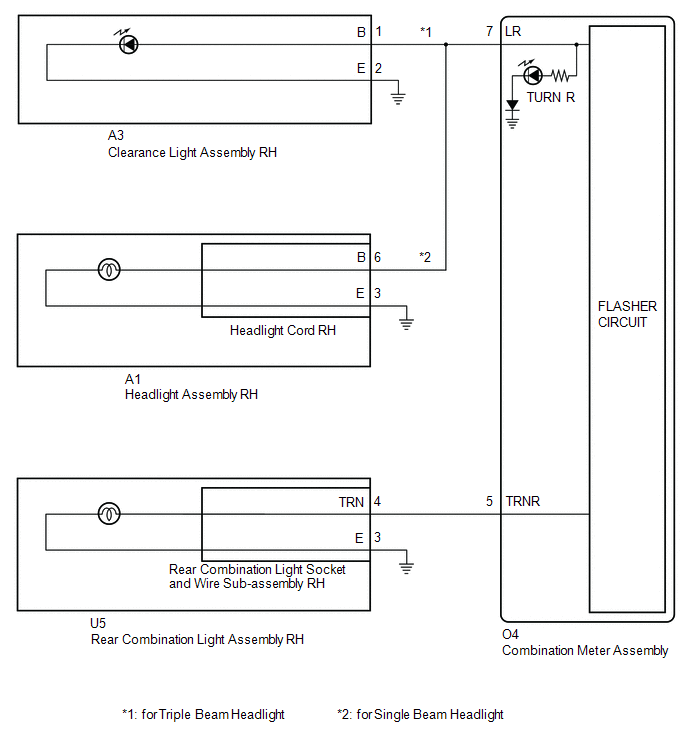

  2. FOR RH SIDE
    GTY822153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
