Parts Location [09/2016 - 09/2017]: Illustration
WARNING: This page is about a different car, the 2019 Lexus NX 300h, 2018 Lexus NX 300h, 2017 Lexus NX 300h, 2016 Lexus NX 300h, and 2015 Lexus NX 300h. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | SHIFT LEVER POSITION SENSOR | *2 | LANE DEPARTURE WARNING CAMERA |
| *3 | POWER STEERING ECU ASSEMBLY | *4 | ECM |
| *5 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY | - | - |

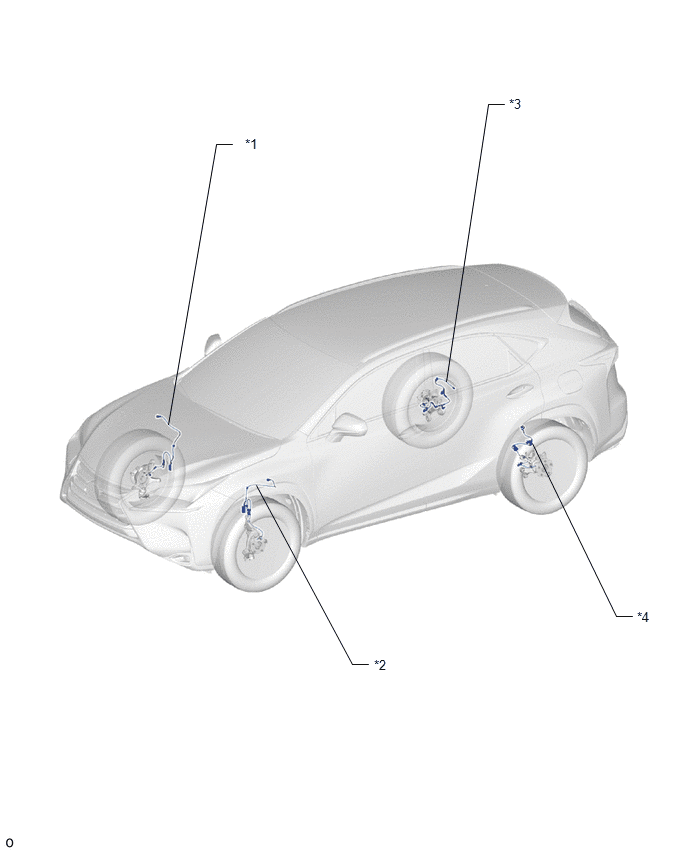

| *1 | FRONT SPEED SENSOR RH | *2 | FRONT SPEED SENSOR LH |
| *3 | REAR SPEED SENSOR RH | *4 | REAR SPEED SENSOR LH |
| *A | w/ Dynamic Radar Cruise Control System | - | - |
| *1 | STEERING PAD SWITCH ASSEMBLY (LANE DEPARTURE ALERT MAIN SWITCH) | *2 | SPIRAL CABLE SUB-ASSEMBLY - STEERING SENSOR |
| *3 | AIRBAG ECU ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | HYBRID VEHICLE CONTROL ECU | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 1 FUSE |
*8 | DLC3 |
| *9 | DRIVING SUPPORT ECU ASSEMBLY | - | - |
