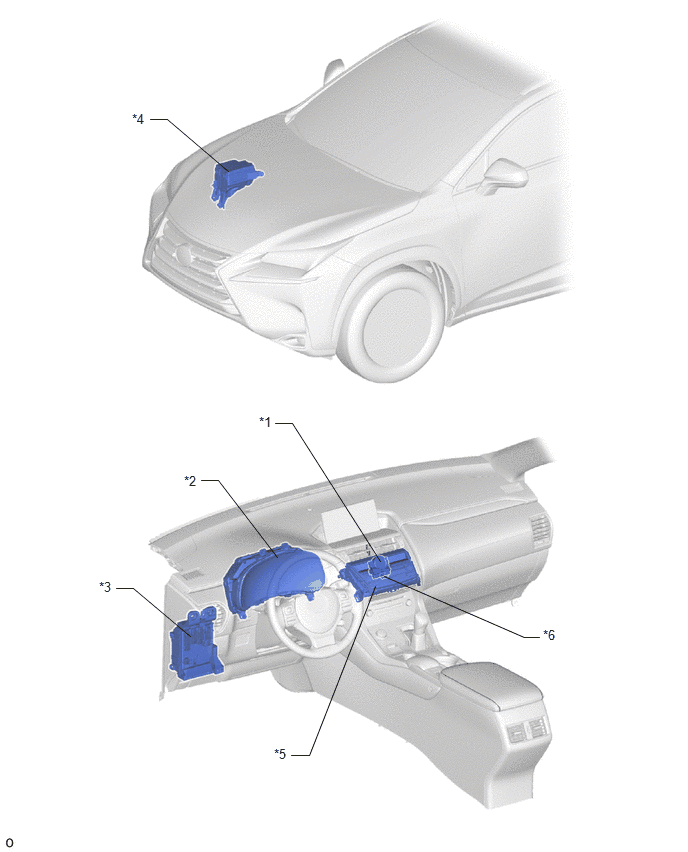

| *1 |
CLOCK ASSEMBLY |
*2 |
COMBINATION METER ASSEMBLY |
| *3 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG NO. 2 FUSE
- ACC FUSE
- PANEL FUSE |
*4 |
NO. 2 ENGINE ROOM RELAY BLOCK
- ECU-B NO. 2 FUSE |
| *5 |
AIR CONDITIONING CONTROL ASSEMBLY |
*6 |
HEATER CONTROL CABLE SUB-ASSEMBLY |
