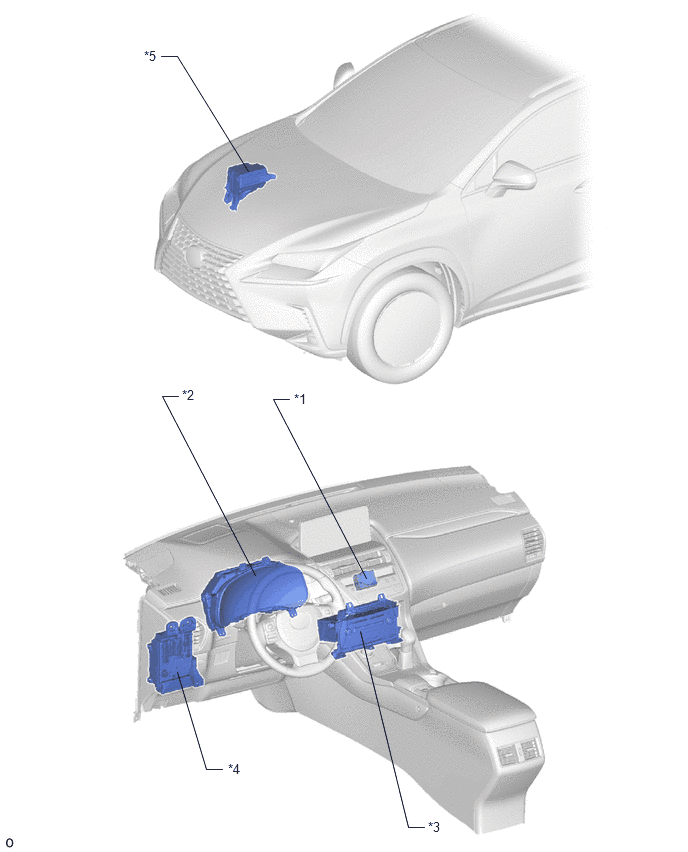

Parts Location [09/2017 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CLOCK ASSEMBLY	*2	COMBINATION METER ASSEMBLY
*3	RADIO RECEIVER ASSEMBLY	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC FUSE - PANEL FUSE
*5	NO. 2 ENGINE ROOM RELAY BLOCK - ECU-B NO. 1 FUSE	-	-
