Automatic High Beam System - Diagnostic Codes & Symptom Tests
>>
Automatic High Beam System
>>
Automatic High Beam System does not Operate or Operation Indicator does not Illuminate [09/2017 - 05/2019]
>>

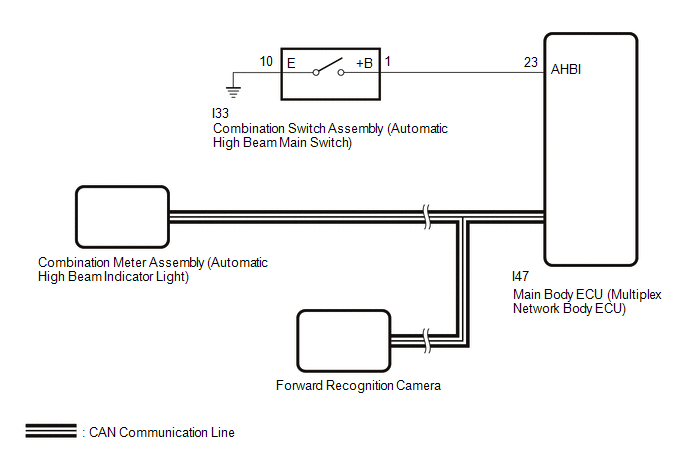

Wiring Diagram
Automatic High Beam System does not Operate or Operation Indicator does not Illuminate [09/2017 - 05/2019]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
