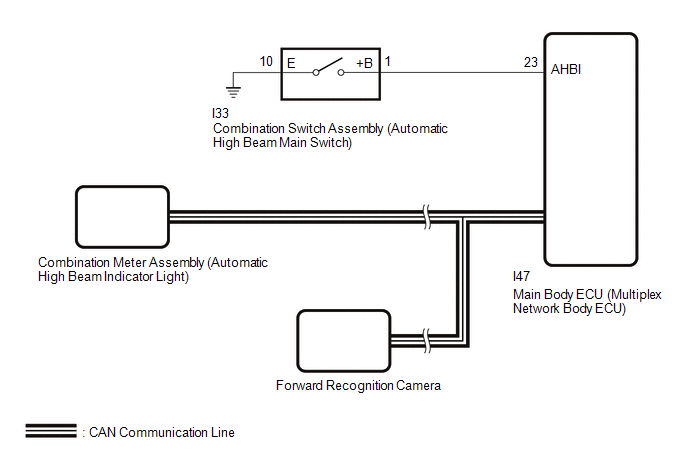

Automatic High Beam System does not Operate or Operation Indicator does not Illuminate [05/2019 - 07/2020]: Wiring Diagram

GTY779061

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
