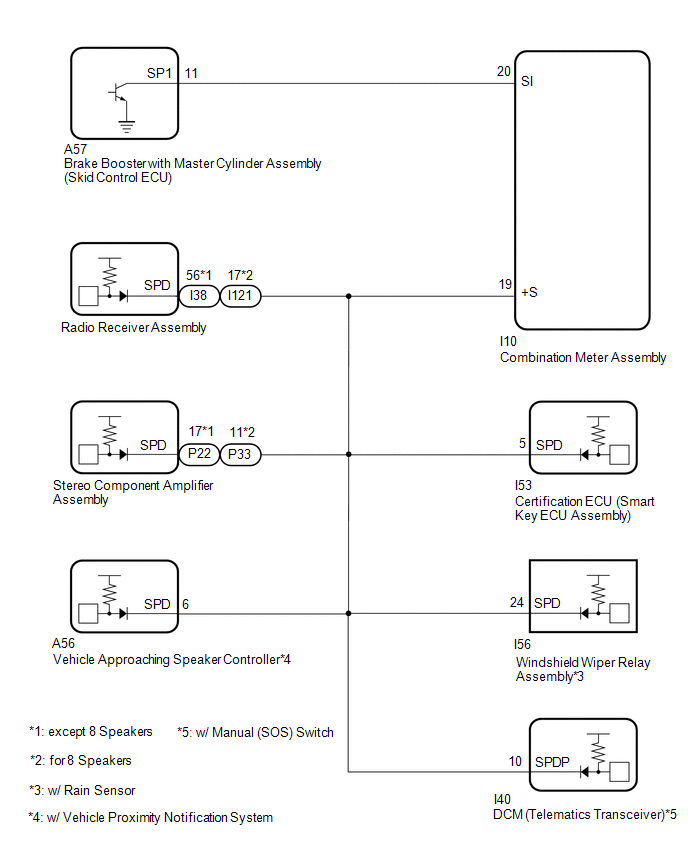

Speed Signal Circuit [10/2014 - 09/2017]: Wiring Diagram

GTY516932

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
