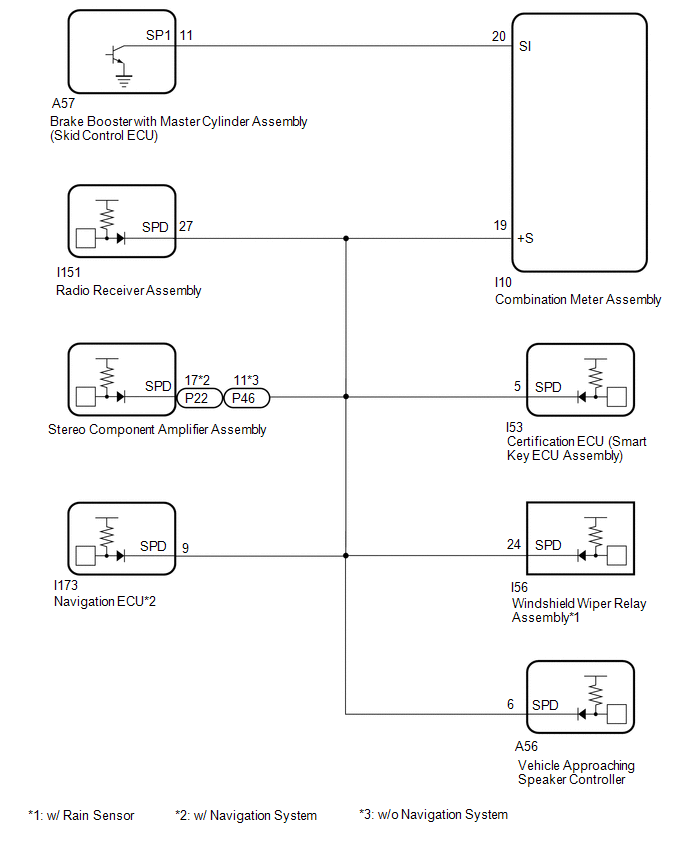

Speed Signal Circuit [09/2017 - 07/2020]: Wiring Diagram

GTY962118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
