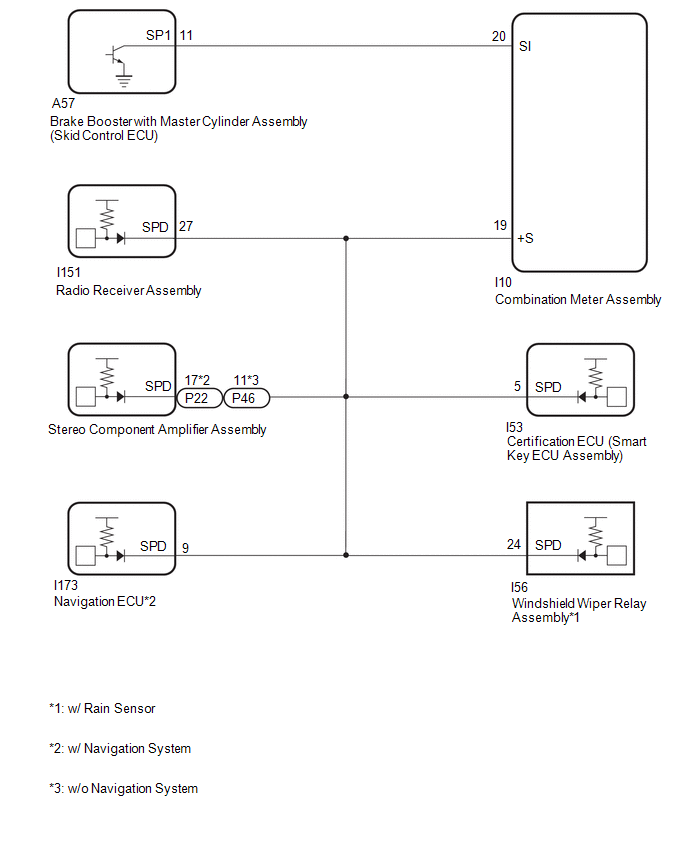

Speed Signal Circuit [07/2020 - ]: Wiring Diagram

GTY953415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
