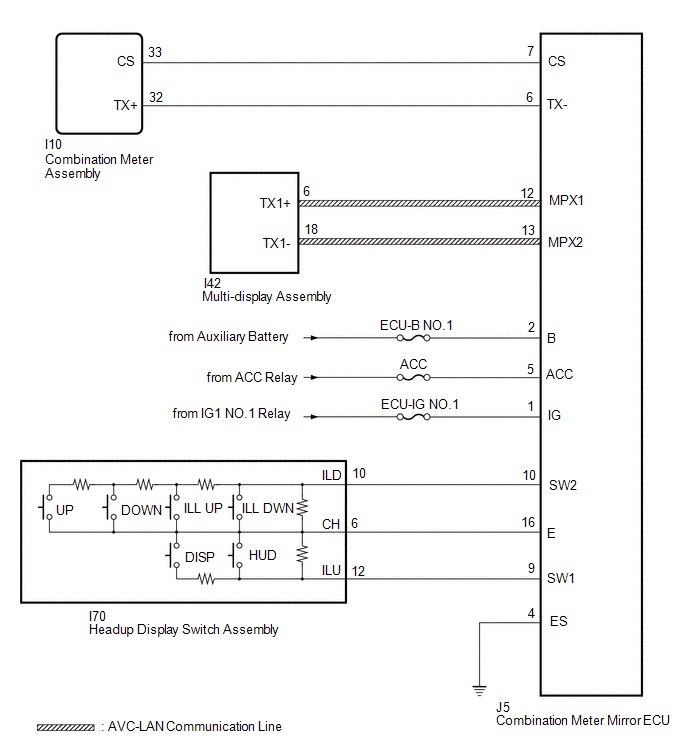

Headup Display Malfunction [10/2014 - 09/2017]: Wiring Diagram

GTY515451

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
