DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [10/2014 - 09/2017]: Wiring Diagram

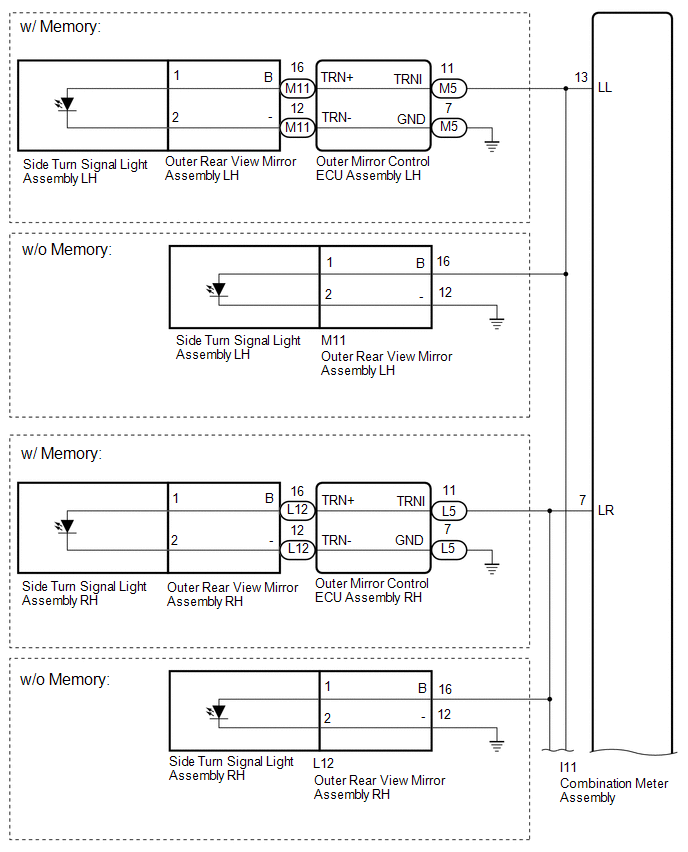

GTY514931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

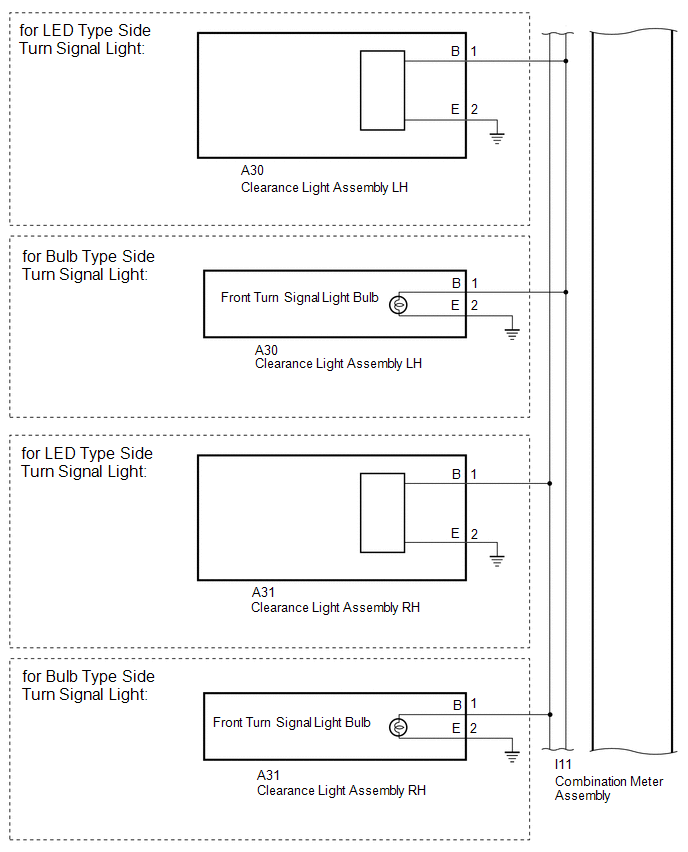

GTY498982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

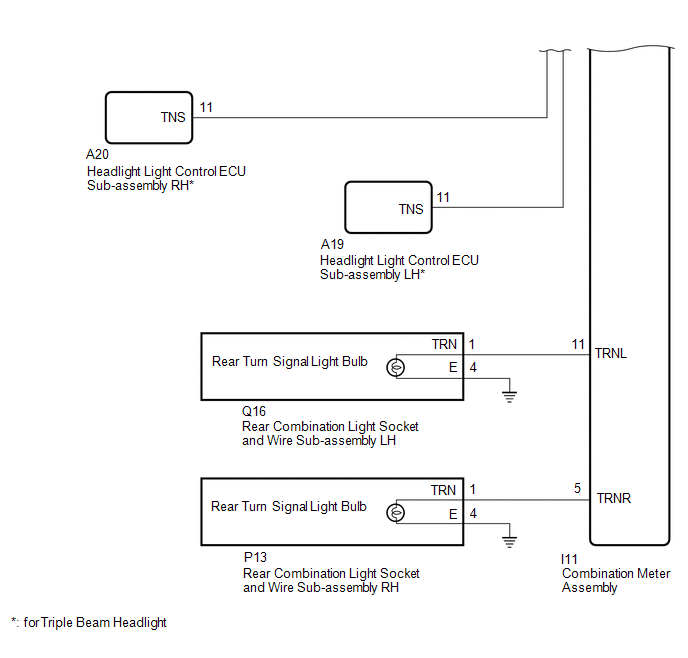

GTY507915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
