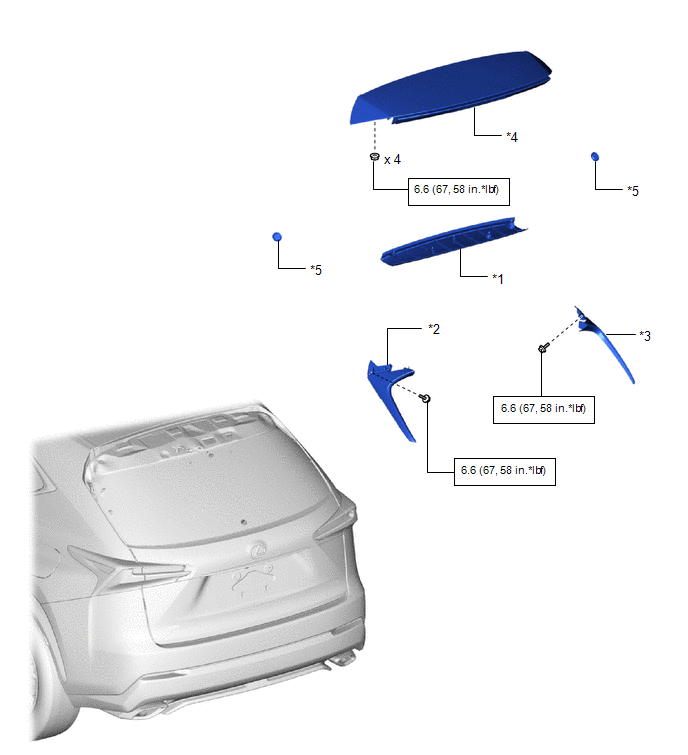

Components [10/2014 - ]
| Callout | Description | Callout | Description |
| *1 | BACK DOOR CENTER GARNISH | *2 | REAR SIDE SPOILER SUB-ASSEMBLY LH |
| *3 | REAR SIDE SPOILER SUB-ASSEMBLY RH | *4 | REAR SPOILER ASSEMBLY |
| *5 | HOLE PLUG | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| *1 | CENTER STOP LIGHT ASSEMBLY | *2 | PACKING |
| *3 | REAR SPOILER NO. 2 PROTECTOR | - | - |
| • | Non-reusable part | - | - |
