Components [10/2014 - 09/2017]

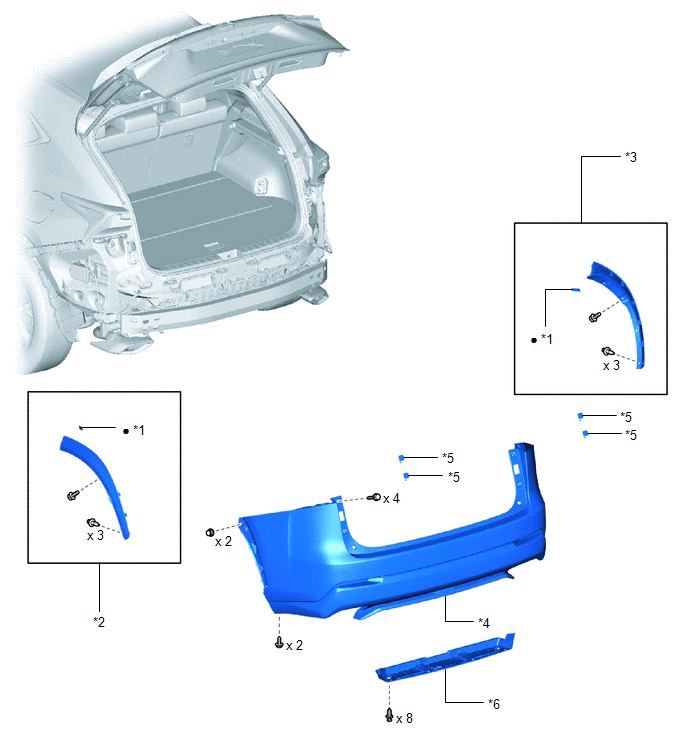

Fig 1: Identifying Rear Bumper Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 5 MOULDING TAPE	*2	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH
*3	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH	*4	REAR BUMPER COVER
*5	REAR BUMPER NO. 1 PLATE	*6	REAR FLOOR SIDE MEMBER COVER
•	Non-reusable part	-	-

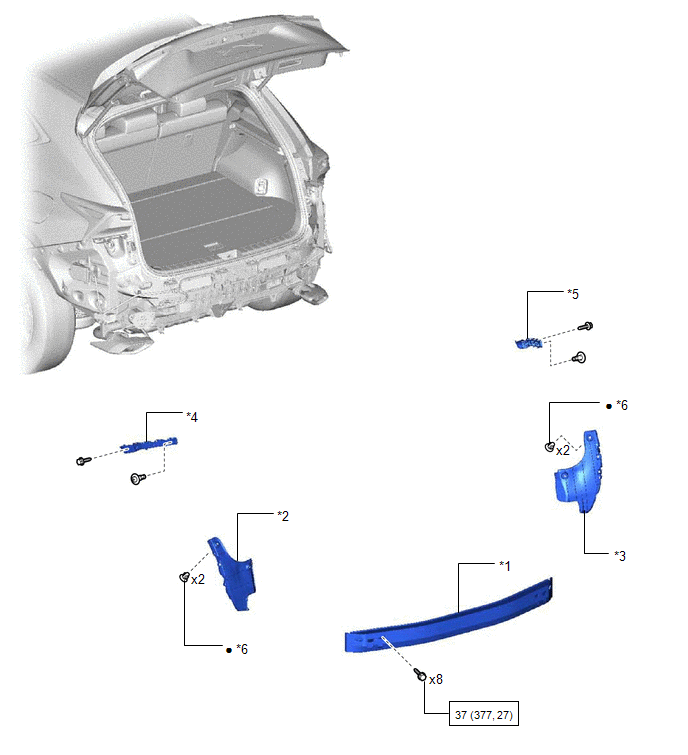

Fig 2: Rear Bumper Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR BUMPER NO. 1 REINFORCEMENT	*2	REAR BUMPER SIDE SEAL LH
*3	REAR BUMPER SIDE SEAL RH	*4	REAR BUMPER SIDE SUPPORT LH
*5	REAR BUMPER SIDE SUPPORT RH	*6	GROMMET
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

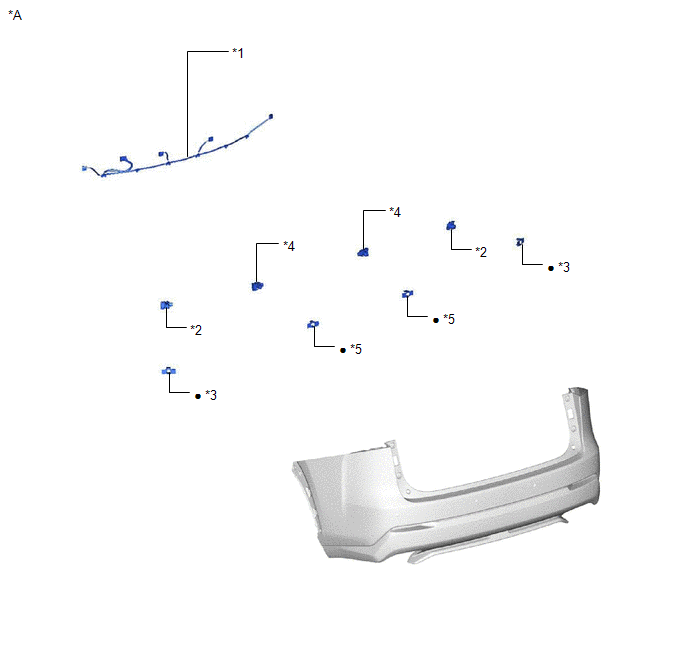

Fig 3: Identifying Rear Bumper Replacement Components (3 Of 4)

*A	w/ Intuitive Parking Assist System	-	-
*1	NO. 2 LUGGAGE ROOM WIRE	*2	NO. 3 ULTRASONIC SENSOR
*3	NO. 3 ULTRASONIC SENSOR RETAINER	*4	NO. 4 ULTRASONIC SENSOR
*5	NO. 4 ULTRASONIC SENSOR RETAINER	-	-
•	Non-reusable part	-	-

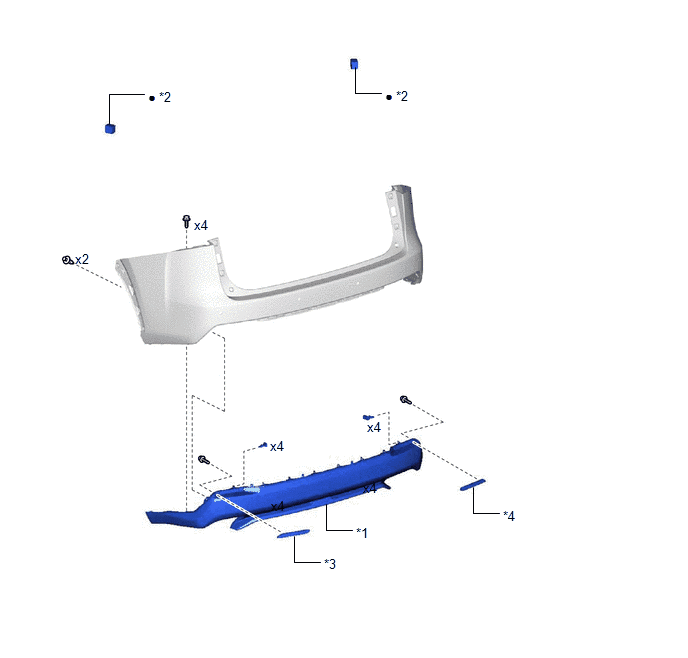

Fig 4: Identifying Rear Bumper Replacement Components (4 Of 4)

*1	REAR BUMPER LOWER COVER	*2	REAR BUMPER PAD
*3	REFLEX REFLECTOR ASSEMBLY LH	*4	REFLEX REFLECTOR ASSEMBLY RH
•	Non-reusable part	-	-
