Components [09/2017 - 05/2019]

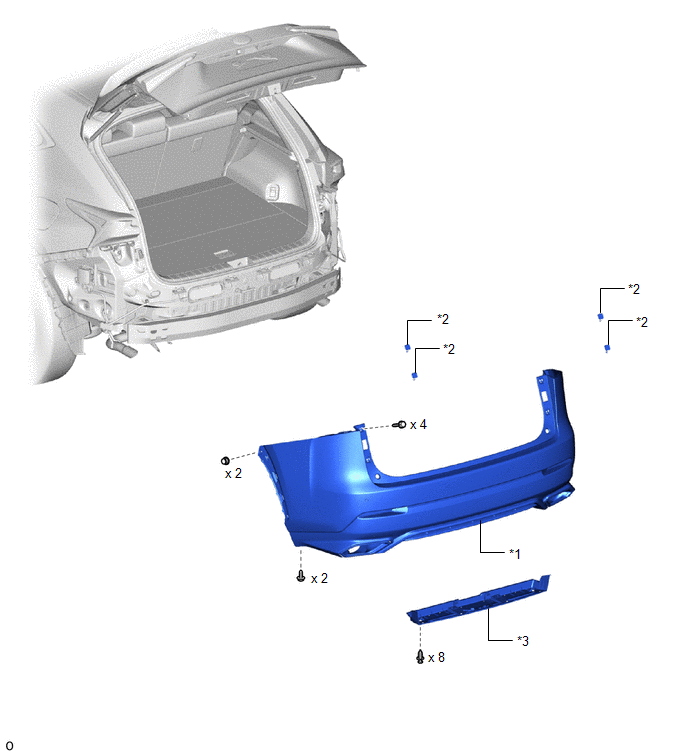

Fig 1: Rear Bumper Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR BUMPER COVER	*2	REAR BUMPER NO. 1 PLATE
*3	REAR FLOOR SIDE MEMBER COVER	-	-

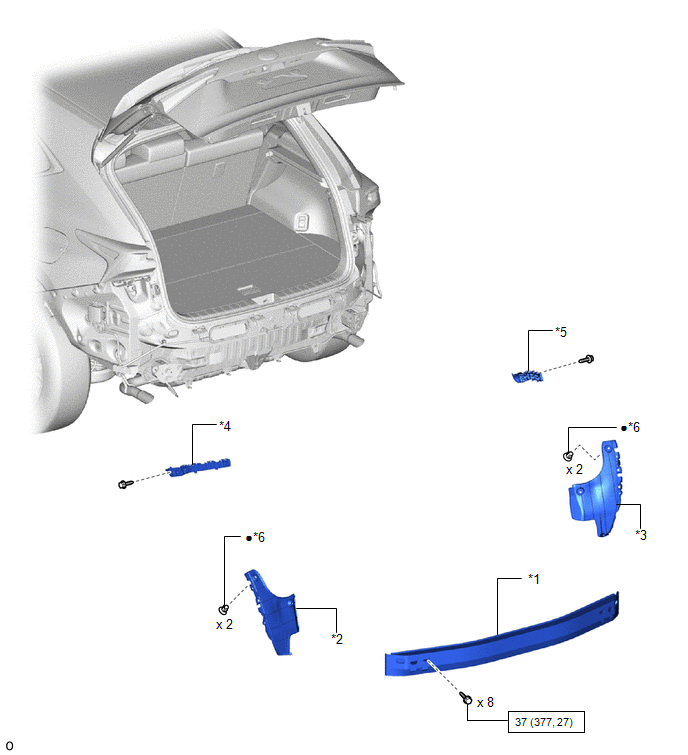

Fig 2: Rear Bumper Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR BUMPER NO. 1 REINFORCEMENT	*2	REAR BUMPER SIDE SEAL LH
*3	REAR BUMPER SIDE SEAL RH	*4	REAR BUMPER SIDE SUPPORT LH
*5	REAR BUMPER SIDE SUPPORT RH	*6	GROMMET
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

Fig 3: Rear Bumper Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

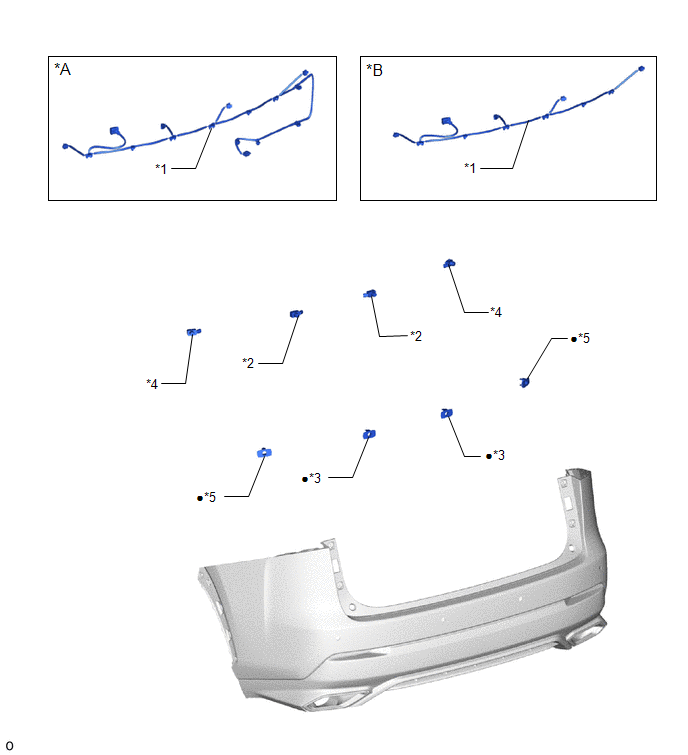

Fig 4: Rear Bumper Replacement Components (4 Of 5)

*A	w/ Hands Free Power Back Door	*B	w/o Hands Free Power Back Door
*1	NO. 2 LUGGAGE ROOM WIRE	*2	REAR CENTER ULTRASONIC SENSOR
*3	REAR CENTER ULTRASONIC SENSOR RETAINER	*4	REAR CORNER ULTRASONIC SENSOR
*5	REAR CORNER ULTRASONIC SENSOR RETAINER	-	-
•	Non-reusable part	-	-

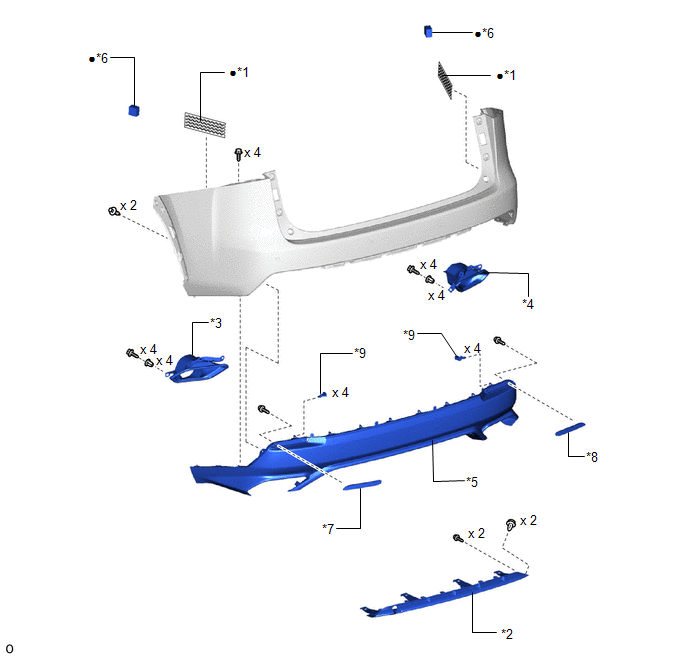

Fig 5: Rear Bumper Replacement Components (5 Of 5)

*1	NO. 1 MOULDING TAPE	*2	REAR BUMPER EXTENSION
*3	REAR BUMPER EXTENSION SUB-ASSEMBLY LH	*4	REAR BUMPER EXTENSION SUB-ASSEMBLY RH
*5	REAR BUMPER LOWER COVER	*6	REAR BUMPER PAD
*7	REFLEX REFLECTOR ASSEMBLY LH	*8	REFLEX REFLECTOR ASSEMBLY RH
*9	OUT SIDE MOULDING RETAINER	-	-
•	Non-reusable part	-	-
