Removal [09/2015 - ]: Procedure

  1. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH

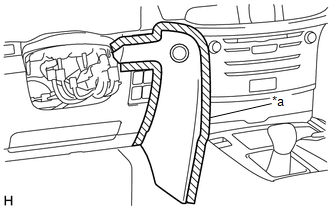

    GTY613806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the lower instrument panel pad sub-assembly LH.
      TEXT IN ILLUSTRATION

      * a Protective Tape

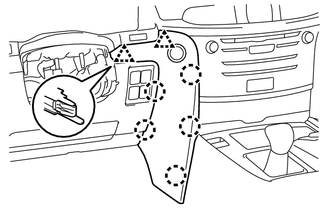

    2. GTY643719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 5 claws and 2 clips.

    3. Disconnect the connector and remove the lower instrument panel pad sub-assembly LH.
  2. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH

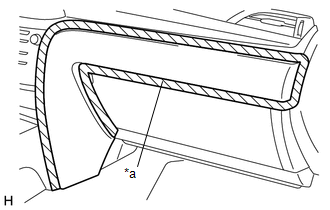

    GTY643999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the lower instrument panel pad sub-assembly RH.
      TEXT IN ILLUSTRATION

      * a Protective Tape

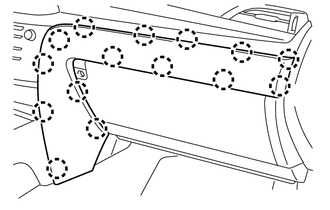

    2. GTY643717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 15 claws and remove the lower instrument panel pad sub-assembly RH.

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

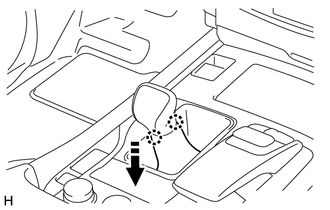

    GTY643718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 2 claws and disconnect the shifting hole cover.

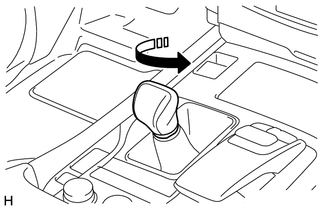

    2. GTY679381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Twist the shift lever knob sub-assembly in the direction indicated by the arrow and remove it.

  4. REMOVE UPPER CONSOLE BOX

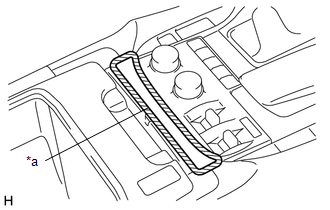

    GTY669026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the upper console box.
      TEXT IN ILLUSTRATION

      * a Protective Tape

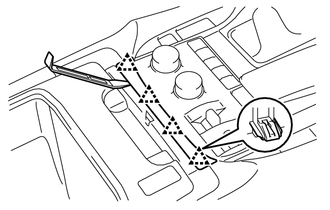

    2. GTY643712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a moulding remover A, detach the 4 clips and remove the upper console box.

  5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

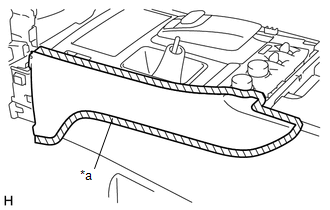

    GTY669585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the instrument panel finish panel end LH.
      TEXT IN ILLUSTRATION

      * a Protective Tape

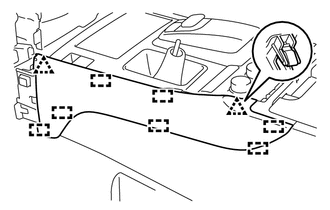

    2. GTY643707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 2 clips and 7 guides and remove the instrument panel finish panel end LH.

  6. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

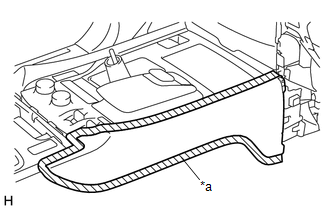

    GTY662065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the instrument panel finish panel end RH.
      TEXT IN ILLUSTRATION

      * a Protective Tape

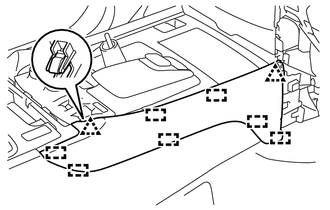

    2. GTY643706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 2 clips and 7 guides and remove the instrument panel finish panel end RH.

  7. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

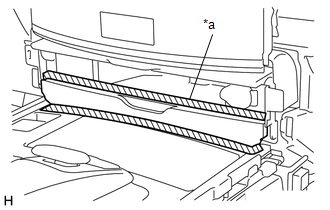

    GTY624572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the lower center instrument cluster finish panel sub-assembly.
      TEXT IN ILLUSTRATION

      * a Protective Tape

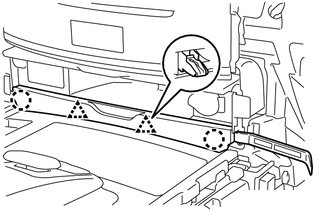

    2. GTY643704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a moulding remover A, detach the 2 claws and 2 clips and remove the lower center instrument cluster finish panel sub-assembly.

  8. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

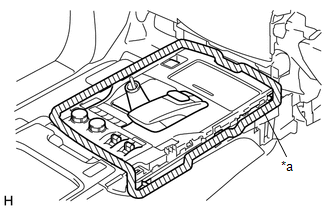

    GTY618366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the upper console panel sub-assembly.
      TEXT IN ILLUSTRATION

      * a Protective Tape

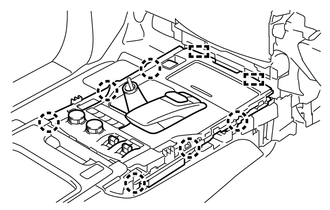

    2. GTY643703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 6 claws and 2 guides.

    3. Disconnect the connectors and remove the upper console panel sub-assembly.
  9. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY

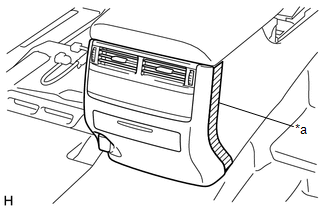

    GTY656791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the rear console end panel sub-assembly.
      TEXT IN ILLUSTRATION

      * a Protective Tape

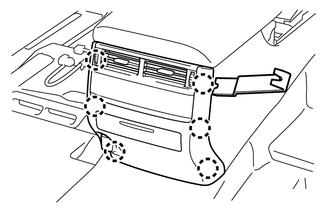

    2. GTY679378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a moulding remover B, detach the 6 claws.

    3. Disconnect the connectors and remove the rear console end panel sub-assembly.
  10. REMOVE DCM (TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver)

    Refer to PROCEDURE - Step 5 [09/2015 - 08/2017] Refer to PROCEDURE - Step 5 [08/2017 - ]

  11. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
    1. Remove the 4 bolts and 2 screws.
    2. Detach the 2 claws and remove the rear console box sub-assembly.

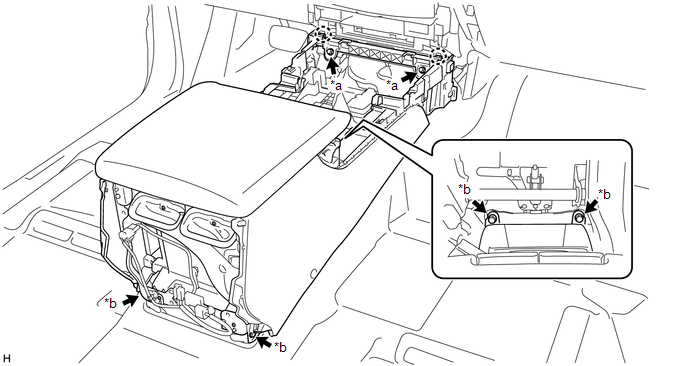

      GTY678873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      * a Screw * b Bolt
