DTC B150A: Lost Communication with HMI-LAN [09/2015 - ]: Wiring Diagram

GTY615877

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

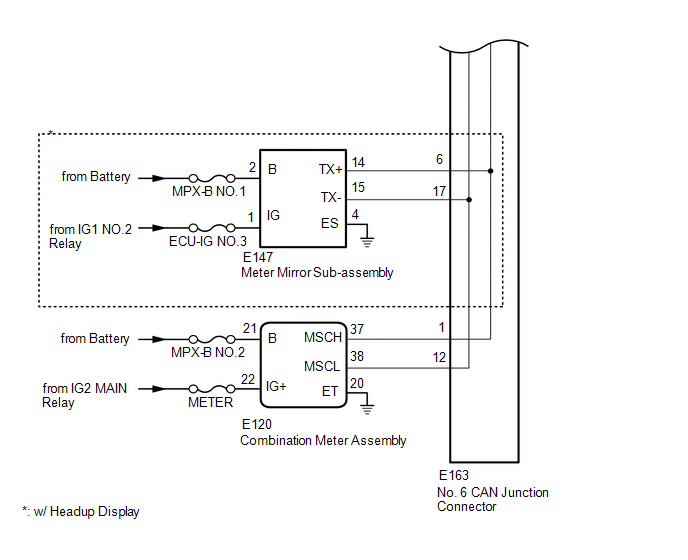

GTY663515

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
