Installation [09/2015 - ]: Procedure

  1. INSTALL LIGHT CONTROL RHEOSTAT

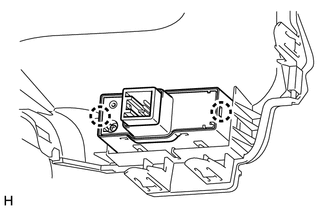

    GTY656017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 2 claws to install the light control rheostat.
  2. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    See step  2

  3. INSTALL NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 35

  4. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 36

  5. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 10

  6. ENABLE AUTOAWAY/RETURN FUNCTION
    1. Restore the autoaway/return function setting to the previous condition by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [09/2015 - ] .
