Inspection [09/2015 - ]: Procedure
- INSPECT LIGHT CONTROL RHEOSTAT
Check the resistance.
Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 6 (TC) - 1 (E) TAIL cancel switch off → on 10 kΩ or higher → Below 1 Ω 5 (T) - 1 (E) Always 10 kΩ +/-20% 7 (TR) - 1 (E) Light control rheostat fully turned right → fully turned left 10 kΩ +/-20% → Below 100 Ω If the result is not as specified, replace the light control rheostat.

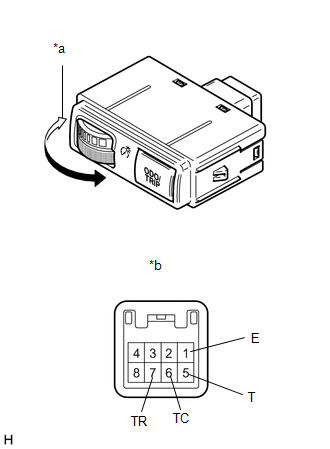

TEXT IN ILLUSTRATION* a Tail Cancel Switch Off * b Component without harness connected
(Light Control Rheostat)Check the illumination.
Apply battery voltage to the connector and check the illumination condition.
OK
Measurement Condition Specified Condition Battery positive (+) → Terminal 2 (ILL+)
Battery negative (-) → Terminal 3 (ILL-)Illuminates If the result is not as specified, replace the light control rheostat.
TEXT IN ILLUSTRATION* a Component without harness connected
(Light Control Rheostat)
