Removal [09/2015 - ]: Procedure

  1. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 13

  2. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 14

  3. REMOVE COMBINATION SWITCH ASSEMBLY (HEADUP DISPLAY SWITCH)

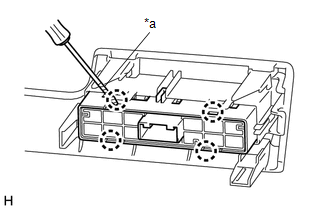

    GTY679061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, detach the 4 claws and remove the combination switch assembly (headup display switch).

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      * a Protective Tape
