Installation [09/2015 - ]: Procedure

  1. INSTALL COMBINATION SWITCH ASSEMBLY (HEADUP DISPLAY SWITCH)

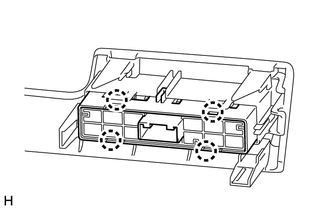

    GTY656014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 4 claws to install the combination switch assembly (headup display switch).
  2. INSTALL NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 35

  3. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 36
