Installation [09/2015 - ]: Procedure

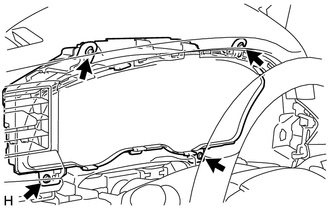

INSTALL COMBINATION METER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the connectors.
2. Install the combination meter assembly with the 4 screws.

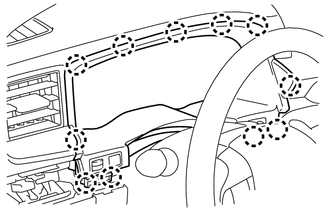

INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

GTY656026

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the connectors.
Attach the 11 claws to install the No. 2 instrument cluster finish panel sub-assembly.

GTY656028

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Attach the 4 claws.

INSTALL NO. 1 SWITCH HOLE BASE
Refer to PROCEDURE - Step 35
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 36
INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 10
ENABLE AUTOAWAY/RETURN FUNCTION
1. Restore the autoaway/return function setting to the previous condition by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [09/2015 - ] .
