Installation [09/2015 - ]: Procedure

  1. INSTALL CLOCK ASSEMBLY

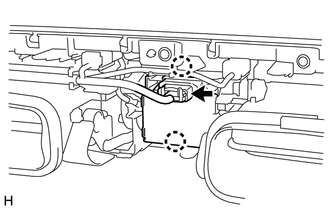

    GTY656020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 2 claws to install the clock assembly.
    2. Connect the connector.
  2. INSTALL INSTRUMENT PANEL MOULDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23

  3. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    See step  2

  4. INSTALL NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 35

  5. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 36

  6. INSTALL INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 24

  7. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 10

  8. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 11

  9. ENABLE AUTOAWAY/RETURN FUNCTION
    1. Restore the autoaway/return function setting to the previous condition by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [09/2015 - ] .
