Removal [09/2015 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [09/2015 - ] )

  2. REMOVE BACK DOOR GARNISH RETAINER SUB-ASSEMBLY

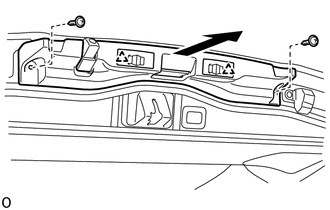

    1. Using a T30H "TORX" driver, remove the 2 "TORX" screws.
      GTY613469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the back door garnish retainer sub-assembly toward the rear of the vehicle to detach the 2 clips to remove it.
    3. Disconnect the connector.
      GTY615306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE LICENSE PLATE LIGHT ASSEMBLY
    1. Remove the 7 screws and remove the No. 1 back door garnish retainer.
      GTY673106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the license plate light:

      HINT:

      Use the same procedure to disconnect the license plate light on the other side.

      1. Remove the screw.
        GTY615307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

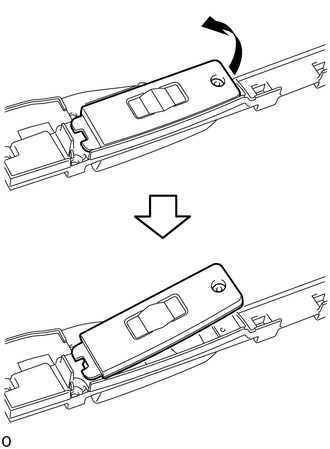

      2. Raise the license plate light upward to disconnect it from the No. 1 back door garnish retainer.
        GTY613457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 3 wire harness clamps.
      GTY615300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the claw and disconnect the connector.
      GTY673104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

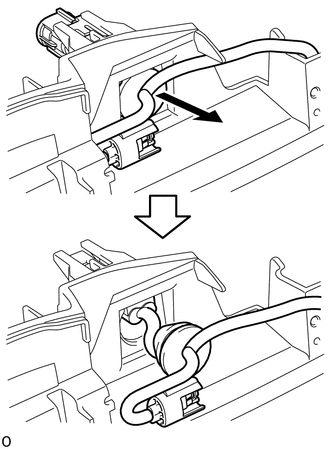

    5. Disconnect the grommet to remove the license plate light assembly.
      GTY613458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
