Removal [10/2017 - ]: Procedure

See step  1 [10/2017 - 10/2020], or see step  1 [10/2020 - ]

Refer to REMOVAL [10/2017 - 10/2023] , or refer to REMOVAL [10/2023 - ]

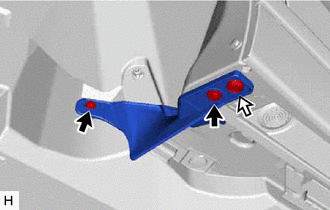

1. Remove the 2 screws, clip and rocker panel moulding protector RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

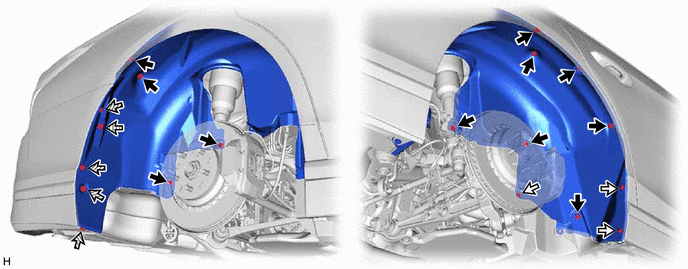

1. Remove the 3 screws, 4 clips, 11 nuts, grommet and rear wheel house liner RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Nut		Screw
   	clip		Grommet

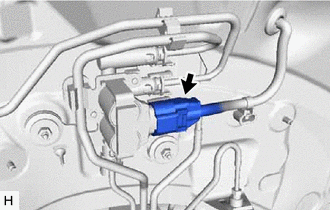

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

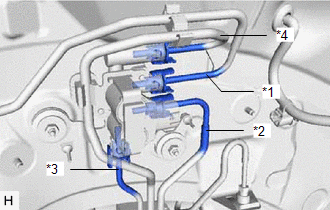

2. Using SST, disconnect the No. 6 height control tube.
   • SST: 09730-00020

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 6 Height Control Tube
   *2	No. 7 Height Control Tube
   *3	No. 8 Height Control Tube
   *4	No. 9 Height Control Tube

   Refer to PRECAUTION [10/2017 - ]

3. Using SST, disconnect the No. 7 height control tube.
   • SST: 09730-00020

   Refer to PRECAUTION [10/2017 - ]

4. Using SST, disconnect the No. 8 height control tube.
   • SST: 09730-00020

   Refer to PRECAUTION [10/2017 - ]

5. Using SST, disconnect the No. 9 height control tube.
   • SST: 09730-00020

   Refer to PRECAUTION [10/2017 - ]

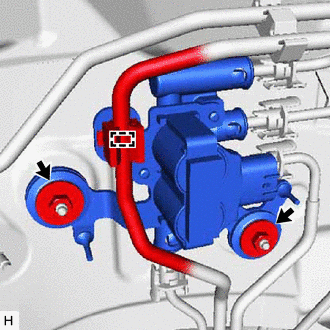

6. Detach the clamp and disconnect the No. 2 height control valve sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Remove the 2 nuts and No. 2 height control valve sub-assembly.

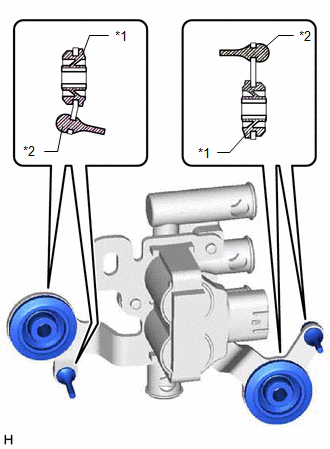

8. Remove the 2 No. 1 height control valve bushes and No. 2 height control valve cushions from the No. 2 height control valve sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Height Control Valve Bush
   *2	No. 2 Height Control Valve Cushion
