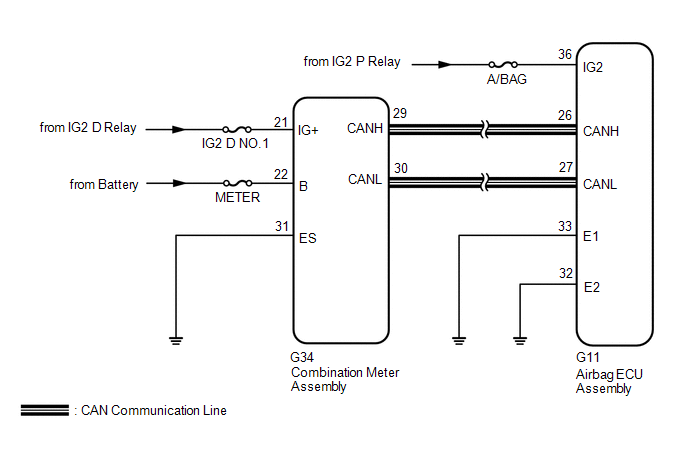

SRS Warning Light does not Come ON [10/2020 - 10/2023]: Wiring Diagram

GTY827943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
