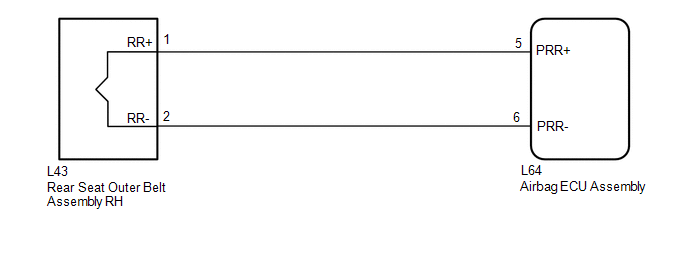

DTC B1920: Short in Rear P/T Squib RH Circuit; DTC B1921: Open in Rear P/T Squib RH Circuit; DTC B1922: Short in Rear P/T Squib RH Circuit (To Ground); DTC B1923: Short in Rear P/T Squib RH Circuit (To B+) [10/2020 - 10/2023]: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
