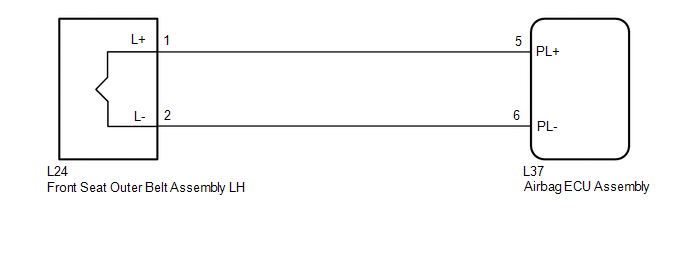

DTC B1905: Short in Front P/T Squib LH Circuit; DTC B1906: Open in Front P/T Squib LH Circuit; DTC B1907: Short in Front P/T Squib LH Circuit (To Ground); DTC B1908: Short in Front P/T Squib LH Circuit (To B+) [10/2020 - 10/2023]: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
