Removal [10/2020 - 10/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal.

    Refer to PRECAUTION [10/2020 - 11/2021] , or refer to PRECAUTION [11/2021 - 10/2023]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 25 [11/2021 - 10/2022]

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [10/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 10/2022]

  4. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 24 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 24 [11/2021 - 10/2022]

  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 26 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 26 [11/2021 - 10/2022]

  6. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 27 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 27 [11/2021 - 10/2022]

  7. REMOVE TOOL BOX

    Refer to PROCEDURE - Step 28 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 28 [11/2021 - 10/2022]

  8. REMOVE INNER LOWER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 29 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 29 [11/2021 - 10/2022]

  9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/o Advanced Drive)

    Refer to PROCEDURE - Step 30 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 30 [11/2021 - 10/2022]

  10. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/ Advanced Drive)

    Refer to PROCEDURE - Step 31 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 31 [11/2021 - 10/2022]

  11. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  12. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (w/o Advanced Drive)

    Refer to PROCEDURE - Step 33 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 33 [11/2021 - 10/2022]

  13. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (w/ Advanced Drive)

    Refer to PROCEDURE - Step 34 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 34 [11/2021 - 10/2022]

  14. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 10 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 10 [11/2021 - ]

  15. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 11 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 11 [11/2021 - ]

  16. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH

    Refer to PROCEDURE - Step 14 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 14 [11/2021 - 10/2023]

  17. REMOVE PARKING BRAKE ECU ASSEMBLY (w/o Advanced Park)

    Refer to PROCEDURE - Step 18 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 18 [11/2021 - 10/2022]

  18. REMOVE FUEL PUMP CONTROL ECU
    1. w/ Advanced Park:

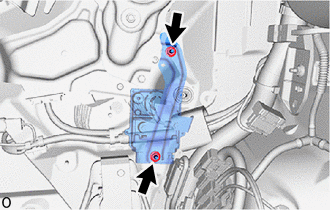

      1. Remove the 2 nuts and pull out the fuel pump control ECU.
        GTY965155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

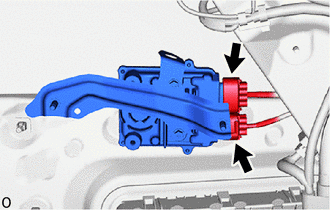

      2. Disconnect the 2 connectors from the fuel pump control ECU.
        GTY965156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the 2 bolts and fuel pump control ECU from the bracket.
        NOTE:

        Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

        GTY965158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Advanced Park:
      1. Remove the 2 bolts and fuel pump control ECU from the parking brake ECU assembly.
        NOTE:

        Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

        GTY792539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
