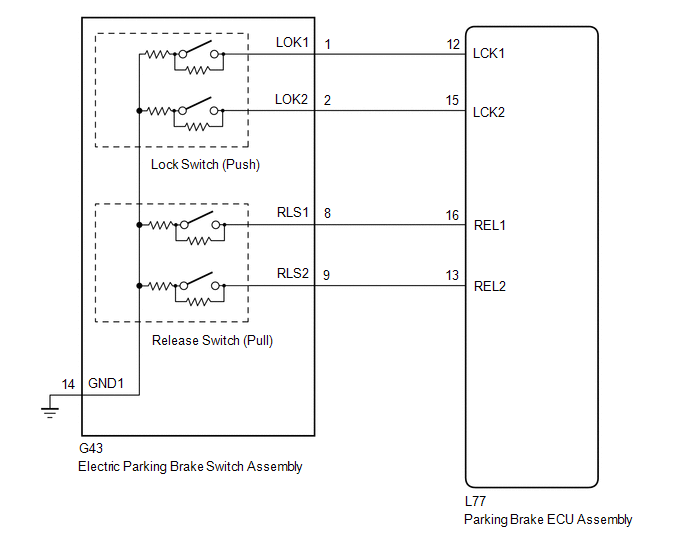

DTC C13A3: Open or Short Circuit in Lock Switch Circuit; DTC C13AB: Lock Switch Circuit Comparison [10/2020 - 10/2023]: Wiring Diagram

GTY794901

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
