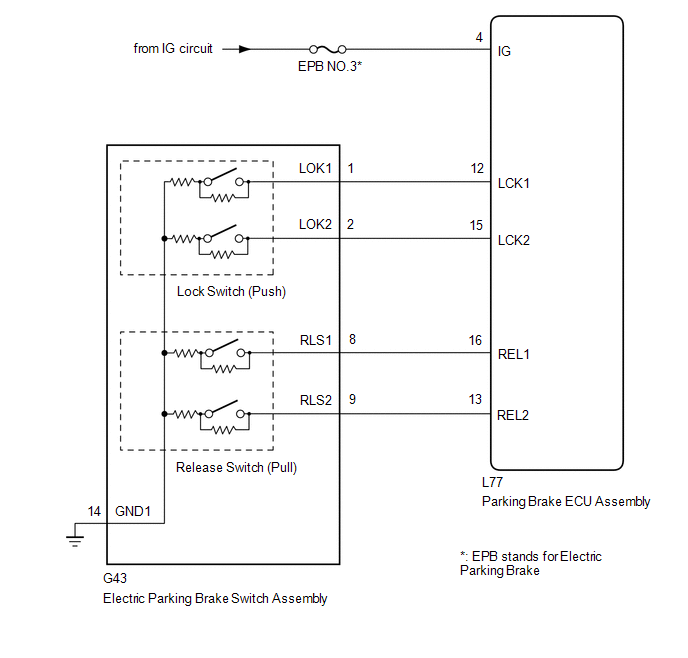

DTC C13A1: Short Circuit in Power Source Circuit [10/2020 - 10/2023]: Wiring Diagram

GTY799607

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
