DTC C1380: Stop Light Control Relay Malfunction [10/2020 - 10/2023]: Wiring Diagram

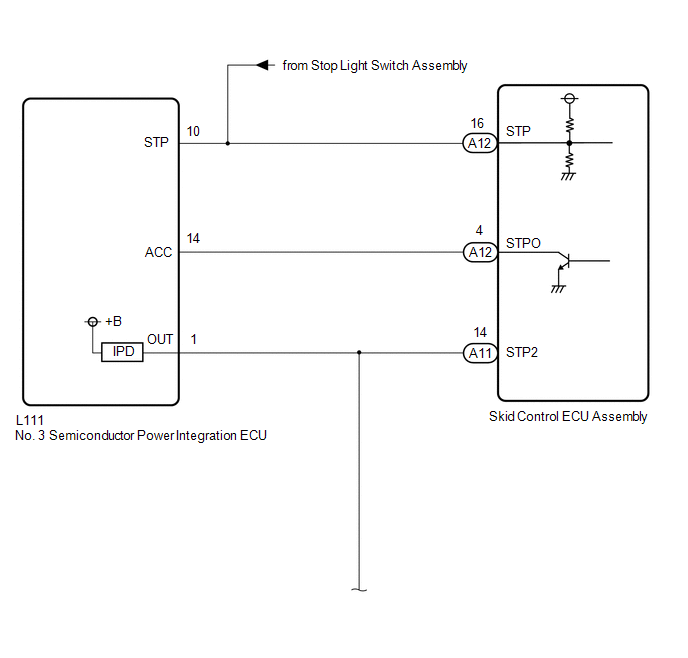

GTY797171

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

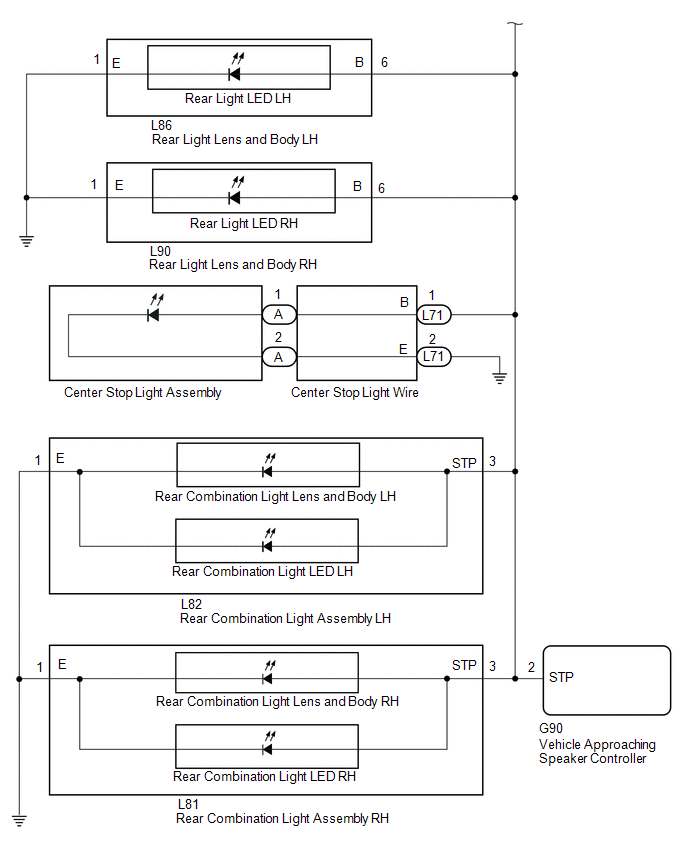

GTY808517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
