Home >> Lexus >> 2021 >> LS 500h RWD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Electronically Controlled Brake System (W/O Advanced Park) - Diagnostic Codes (2 Of 3) >> ELECTRONICALLY CONTROLLED BRAKE SYSTEM (w/o Advanced Park) >> DTC C1315: SMC1 Changeover Solenoid; DTC C1316: SMC2 Changeover Solenoid; DTC C1352: Increasing Pressure Solenoid (FR); DTC C1353: Increasing Pressure Solenoid (FL); DTC C1354: Increasing Pressure Solenoid (RR); DTC C1355: Increasing Pressure Solenoid (RL); DTC C1356: Decreasing Pressure Solenoid (FR); DTC C1357: Decreasing Pressure Solenoid (FL); DTC C1358: Decreasing Pressure Solenoid (RR); DTC C1359: Decreasing Pressure Solenoid (RL) [10/2020 - 10/2023] >> Wiring Diagram

DTC C1315: SMC1 Changeover Solenoid; DTC C1316: SMC2 Changeover Solenoid; DTC C1352: Increasing Pressure Solenoid (FR); DTC C1353: Increasing Pressure Solenoid (FL); DTC C1354: Increasing Pressure Solenoid (RR); DTC C1355: Increasing Pressure Solenoid (RL); DTC C1356: Decreasing Pressure Solenoid (FR); DTC C1357: Decreasing Pressure Solenoid (FL); DTC C1358: Decreasing Pressure Solenoid (RR); DTC C1359: Decreasing Pressure Solenoid (RL) [10/2020 - 10/2023]: Wiring Diagram

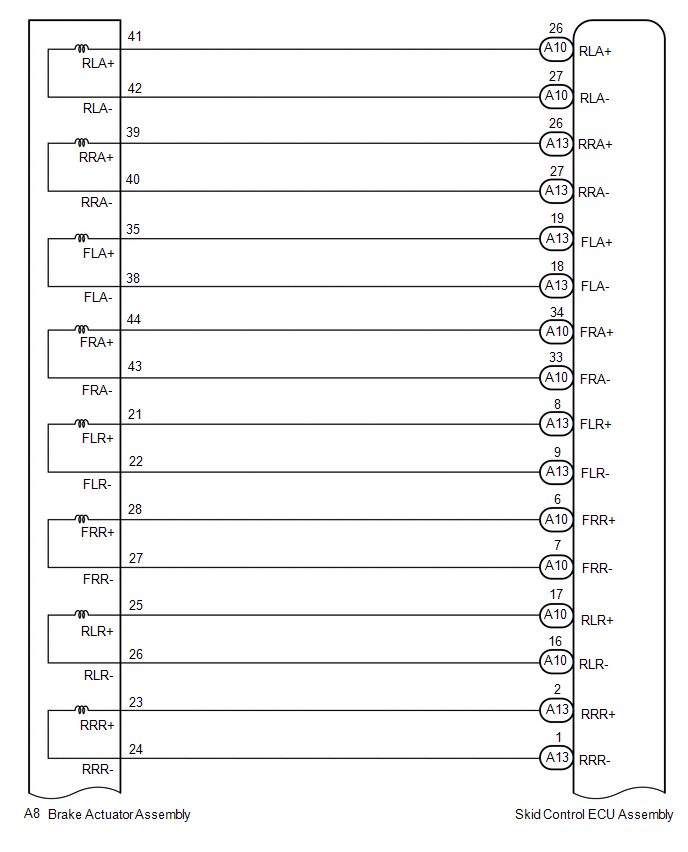

GTY774818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

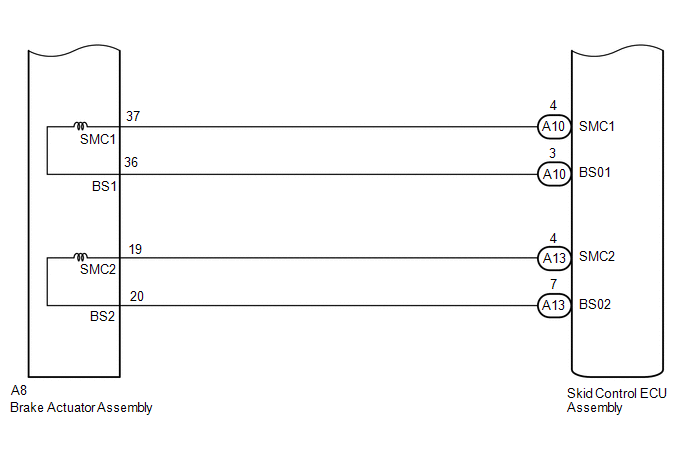

GTY780575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
