Components [09/2019 - 10/2020]

Fig 1: Front Bumper (For Sport Package) Replacement Components With Torque Specifications [09/2019 - 10/2020] (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY	*2	NEGATIVE AUXILIARY BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

Fig 2: Front Bumper (For Sport Package) Replacement Components [09/2019 - 10/2020] (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT BUMPER ASSEMBLY	*2	LOWER RADIATOR AIR DEFLECTOR
*3	RADIATOR COVER PLATE	*4	UPPER RADIATOR SUPPORT SEAL
*5	FRONT BUMPER SEAL BRACKET	-	-

Fig 3: Front Bumper (For Sport Package) Replacement Components [09/2019 - 10/2020] (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Headlight Cleaner System	-	-
*1	HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH	*2	HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH
*3	HEADLIGHT WASHER COVER LH	*4	HEADLIGHT WASHER COVER RH
*5	NO. 1 HEADLIGHT CLEANER HOSE	*6	NO. 2 WASHER BRACKET
*7	WASHER BRACKET	*8	SPRING NUT
•	Non-reusable part	-	-

Fig 4: Front Bumper (For Sport Package) Replacement Components [09/2019 - 10/2020] (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT CENTER ULTRASONIC SENSOR	*2	FRONT CORNER ULTRASONIC SENSOR
*3	FRONT CORNER ULTRASONIC SENSOR RETAINER	*4	FRONT ULTRASONIC SENSOR CLIP
*5	NO. 4 ENGINE ROOM WIRE	-	-
•	Non-reusable part	-	-

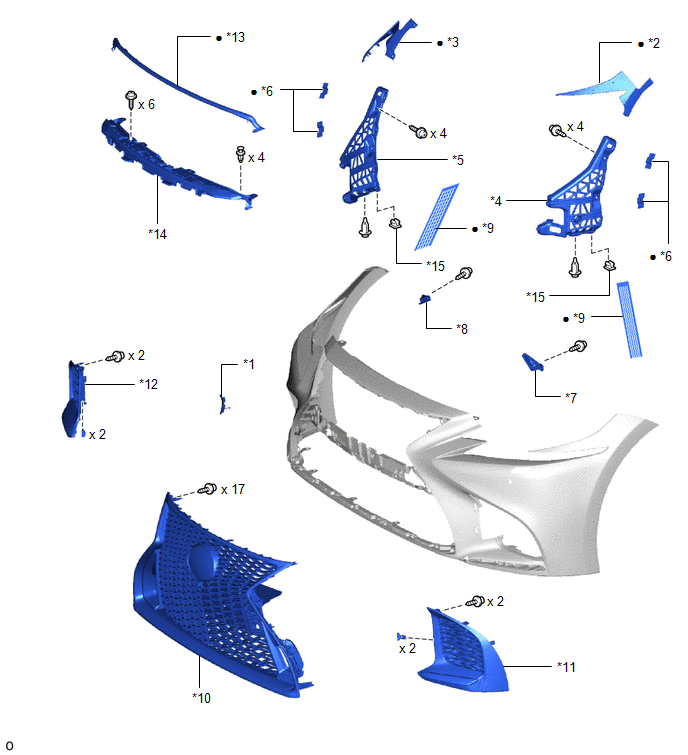

Fig 5: Front Bumper (For Sport Package) Replacement Components [09/2019 - 10/2020] (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT BUMPER HOLE COVER RH	*2	FRONT BUMPER NO. 2 SIDE RETAINER LH
*3	FRONT BUMPER NO. 2 SIDE RETAINER RH	*4	FRONT BUMPER REINFORCEMENT EXTENSION LH
*5	FRONT BUMPER REINFORCEMENT EXTENSION RH	*6	FRONT BUMPER RETAINER
*7	LOWER RADIATOR GRILLE BRACKET LH	*8	LOWER RADIATOR GRILLE BRACKET RH
*9	NO. 1 MOULDING TAPE	*10	RADIATOR GRILLE ASSEMBLY
*11	RADIATOR GRILLE BRACKET LH	*12	RADIATOR GRILLE BRACKET RH
*13	RADIATOR GRILLE PROTECTOR	*14	UPPER RADIATOR GRILLE
*15	GROMMET	-	-
•	Non-reusable part	-	-

Fig 6: Front Bumper (For Sport Package) Replacement Components [09/2019 - 10/2020] (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT BUMPER EXTENSION MOUNTING BRACKET	-	-

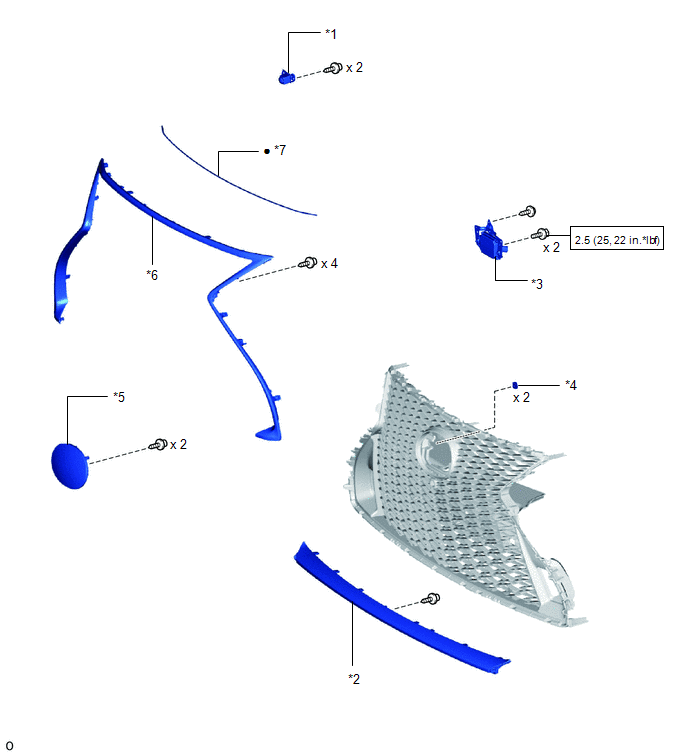

Fig 7: Front Bumper (For Sport Package) Replacement Components With Torque Specifications [09/2019 - 10/2020] (7 Of 8)

Callout	Description	Callout	Description
*1	FRONT TELEVISION CAMERA ASSEMBLY	*2	LOWER RADIATOR GRILLE MOULDING
*3	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	*4	NUT
*5	RADIATOR GRILLE (OR FRONT PANEL) EMBLEM	*6	RADIATOR GRILLE MOULDING
*7	UPPER RADIATOR SEAL	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

Fig 8: Front Bumper (For Sport Package) Replacement Components With Torque Specifications [09/2019 - 10/2020] (8 Of 8)

Callout	Description	Callout	Description
*1	FRONT BUMPER ENERGY ABSORBER SUB-ASSEMBLY	*2	FRONT BUMPER NO. 2 ENERGY ABSORBER
*3	FRONT BUMPER NO. 2 REINFORCEMENT SUB-ASSEMBLY	*4	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
*5	FRONT BUMPER SIDE RETAINER LH	*6	FRONT BUMPER SIDE RETAINER RH
*7	LOWER ARM BRACKET BRACE SUB-ASSEMBLY LH	*8	LOWER ARM BRACKET BRACE SUB-ASSEMBLY RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
