Removal [10/2020 - 11/2021]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    w/ Advanced Drive:

    -

    w/o Advanced Drive:

    Refer to PRECAUTION [10/2020 - 11/2021]

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to PRECAUTION [10/2020 - 11/2021]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

    WARNING:
    • After disconnecting the cable from the negative (-) auxiliary battery terminal, wait for at least 60 seconds to start the operation.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 1

  5. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 2

  6. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 3

  7. REMOVE FRONT BUMPER ASSEMBLY

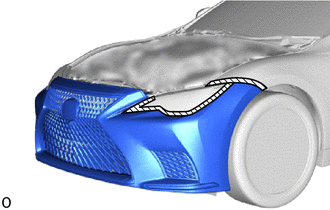

    1. GTY967386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      Put protective tape around the front bumper assembly.

    2. Remove the 3 bolts.
      GTY967721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 clips.
      GTY967722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other side.

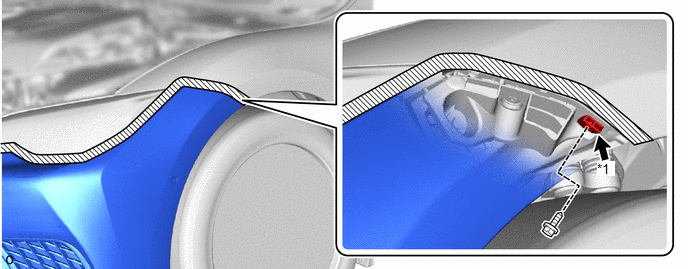

    4. Remove the screw.
      GTY967373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Bumper Seal Bracket - -

      HINT:

      Use the same procedure for the other side.

    5. Remove the front bumper seal bracket.

      HINT:

      Use the same procedure for the other side.

    6. Remove the 8 screws.
      GTY967725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

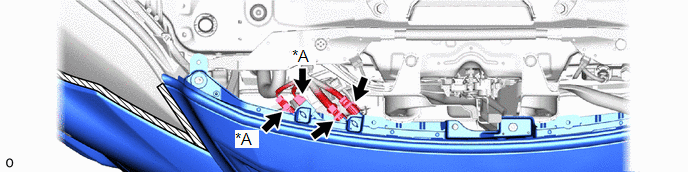

    7. Disconnect each connector.
      GTY1086062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Advanced Drive - -
    8. Place your hand at the positions shown in the illustration and pull in the removal direction to detach the claw.
      GTY967875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hands here
      Remove in this Direction

      HINT:

      Use the same procedure for the other side.

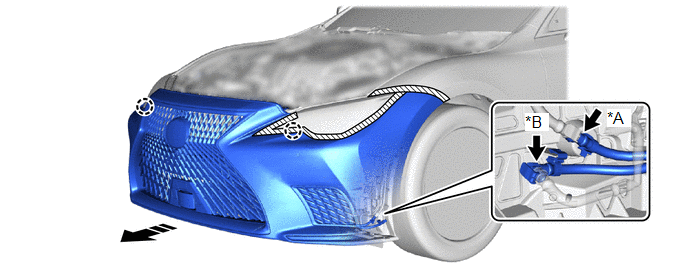

    9. Detach the claw and remove the front bumper assembly.
      GTY966544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Headlight Cleaner System *B w/ Advanced Drive
      Remove in this Direction - -
    10. w/ Headlight Cleaner System:
      1. Disconnect the headlight cleaner hose.

        HINT:

        Prepare a container before performing the procedure.

    11. w/ Advanced Drive:
      1. Disconnect the front No. 2 LiDAR cleaner hose.

        HINT:

        Prepare a container before performing the procedure.
