Components [10/2017 - 09/2018]
Fig 1: Front Bumper (Except Sport Package) Replacement Components With Torque Specifications [10/2017 - 09/2018] (1 Of 7)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

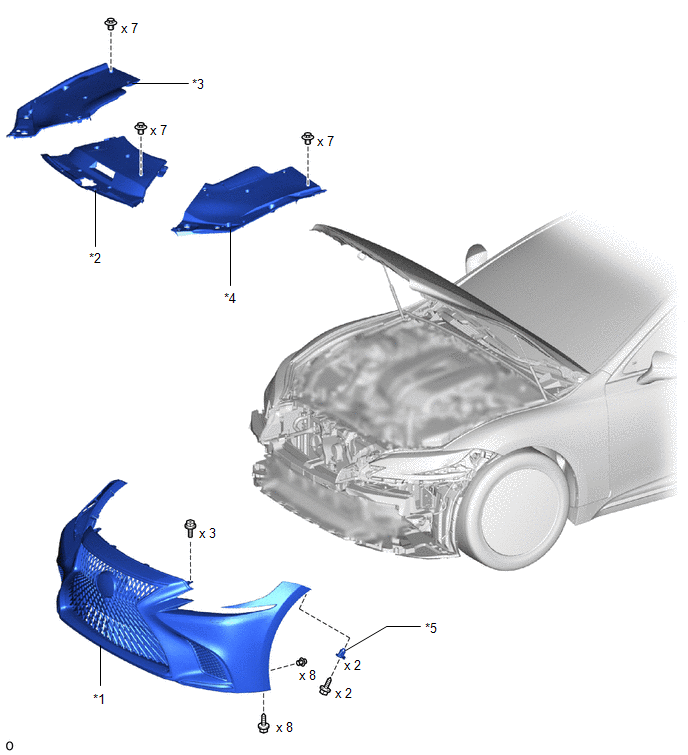

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT BUMPER ASSEMBLY | *2 | LOWER RADIATOR AIR DEFLECTOR |
| *3 | RADIATOR COVER PLATE | *4 | UPPER RADIATOR SUPPORT SEAL |
| *5 | FRONT BUMPER SEAL BRACKET | - | - |

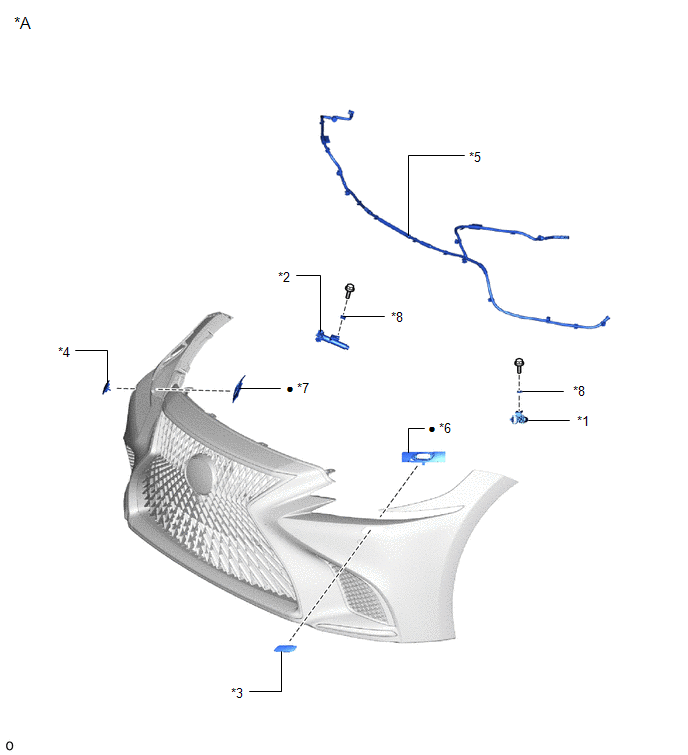

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Headlight Cleaner System | - | - |
| *1 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH | *2 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH |
| *3 | HEADLIGHT WASHER COVER LH | *4 | HEADLIGHT WASHER COVER RH |
| *5 | NO. 1 HEADLIGHT CLEANER HOSE | *6 | NO. 2 WASHER BRACKET |
| *7 | WASHER BRACKET | *8 | SPRING NUT |
| • | Non-reusable part | - | - |

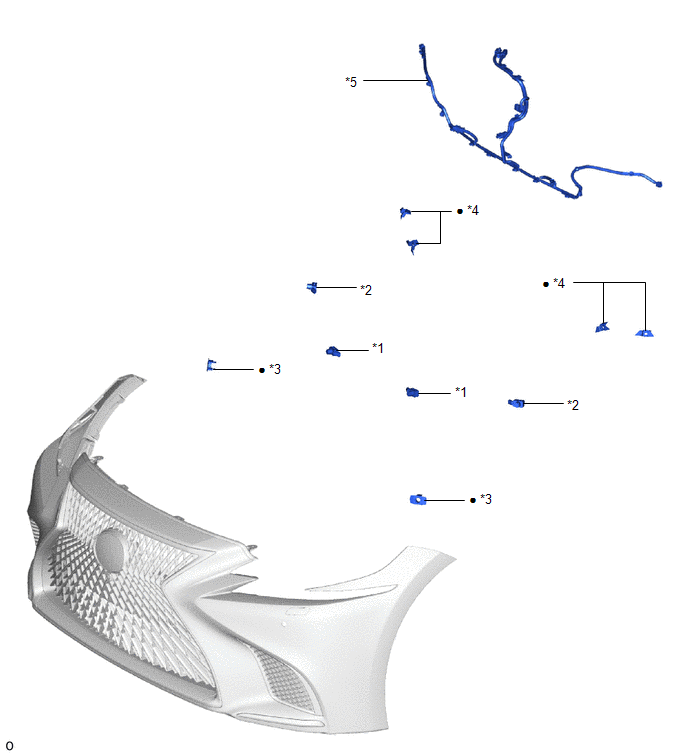

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT CENTER ULTRASONIC SENSOR | *2 | FRONT CORNER ULTRASONIC SENSOR |
| *3 | FRONT CORNER ULTRASONIC SENSOR RETAINER | *4 | FRONT ULTRASONIC SENSOR CLIP |
| *5 | NO. 4 ENGINE ROOM WIRE | - | - |
| • | Non-reusable part | - | - |

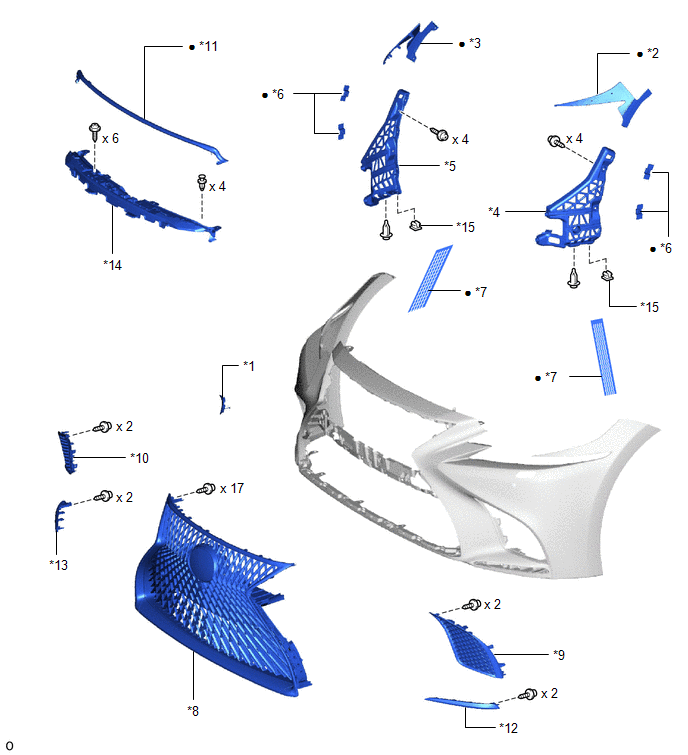

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT BUMPER HOLE COVER RH | *2 | FRONT BUMPER NO. 2 SIDE RETAINER LH |
| *3 | FRONT BUMPER NO. 2 SIDE RETAINER RH | *4 | FRONT BUMPER REINFORCEMENT EXTENSION LH |
| *5 | FRONT BUMPER REINFORCEMENT EXTENSION RH | *6 | FRONT BUMPER RETAINER |
| *7 | NO. 1 MOULDING TAPE | *8 | RADIATOR GRILLE ASSEMBLY |
| *9 | RADIATOR GRILLE BRACKET LH | *10 | RADIATOR GRILLE BRACKET RH |
| *11 | RADIATOR GRILLE PROTECTOR | *12 | RADIATOR GRILLE SIDE MOULDING LH |
| *13 | RADIATOR GRILLE SIDE MOULDING RH | *14 | UPPER RADIATOR GRILLE |
| *15 | GROMMET | - | - |
| • | Non-reusable part | - | - |

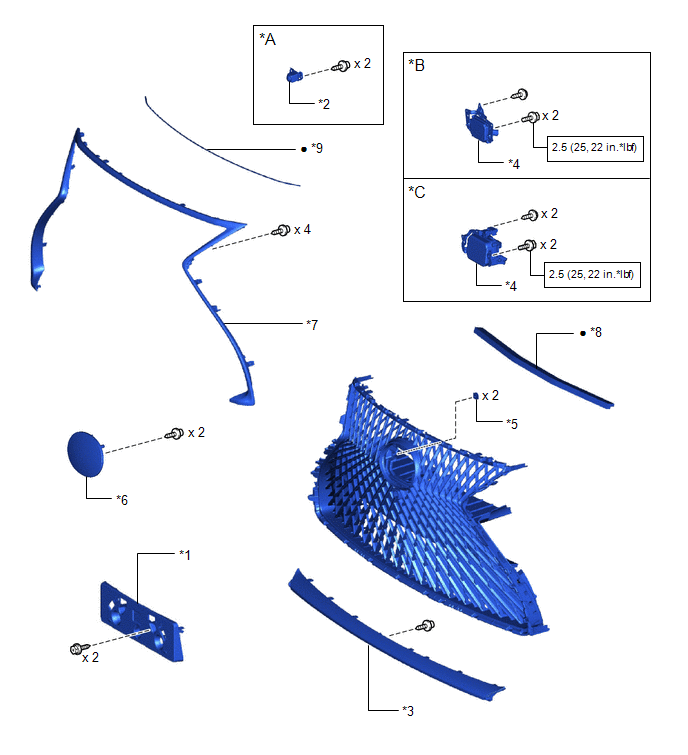

Fig 6: Front Bumper (Except Sport Package) Replacement Components With Torque Specifications [10/2017 - 09/2018] (6 Of 7)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Panoramic View Monitor System | *B | for Stereo Camera Type |
| *C | for Mono Camera Type | - | - |
| *1 | FRONT BUMPER EXTENSION MOUNTING BRACKET | *2 | FRONT TELEVISION CAMERA ASSEMBLY |
| *3 | LOWER RADIATOR GRILLE MOULDING | *4 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *5 | NUT | *6 | RADIATOR GRILLE (OR FRONT PANEL) EMBLEM |
| *7 | RADIATOR GRILLE MOULDING | *8 | RADIATOR GRILLE SEAL |
| *9 | UPPER RADIATOR SEAL | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

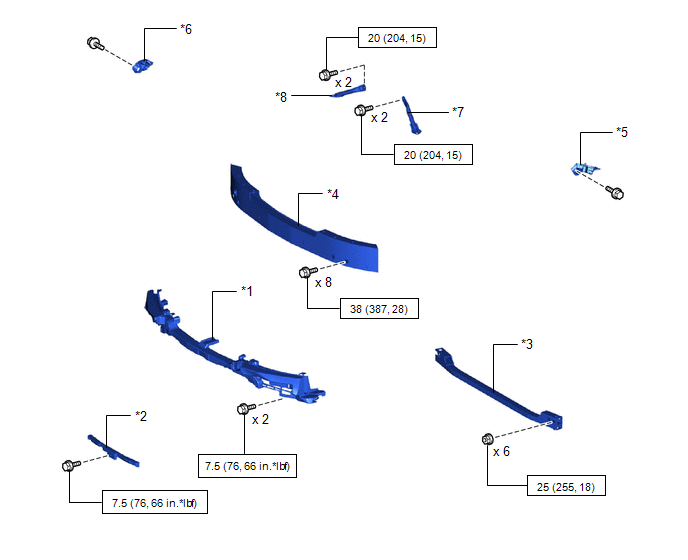

Fig 7: Front Bumper (Except Sport Package) Replacement Components With Torque Specifications [10/2017 - 09/2018] (7 Of 7)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT BUMPER ENERGY ABSORBER SUB-ASSEMBLY | *2 | FRONT BUMPER NO. 2 ENERGY ABSORBER |
| *3 | FRONT BUMPER NO. 2 REINFORCEMENT SUB-ASSEMBLY | *4 | FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY |
| *5 | FRONT BUMPER SIDE RETAINER LH | *6 | FRONT BUMPER SIDE RETAINER RH |
| *7 | LOWER ARM BRACKET BRACE SUB-ASSEMBLY LH | *8 | LOWER ARM BRACKET BRACE SUB-ASSEMBLY RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
