Components [10/2020 - 11/2021]

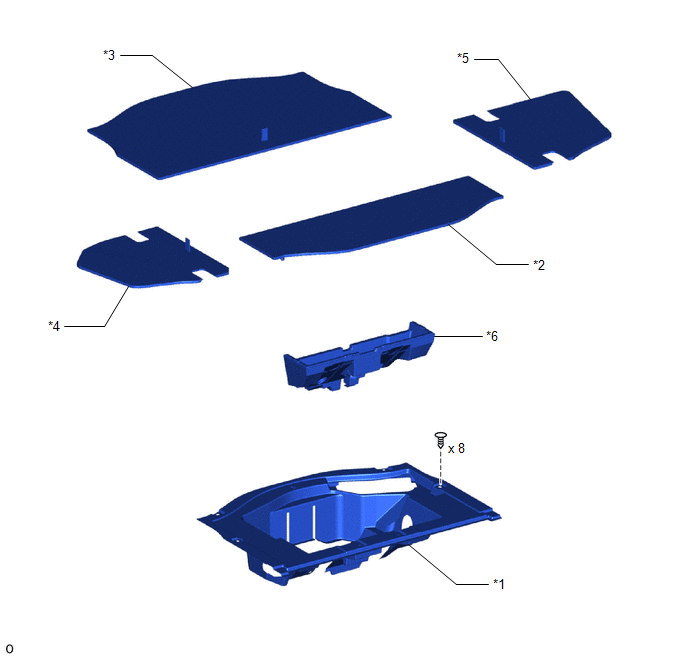

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | INNER LOWER LUGGAGE COMPARTMENT TRIM COVER | *2 | LUGGAGE COMPARTMENT FLOOR MAT |
| *3 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY | *4 | LUGGAGE COMPARTMENT TRIM COVER LH |
| *5 | LUGGAGE COMPARTMENT TRIM COVER RH | *6 | TOOL BOX |

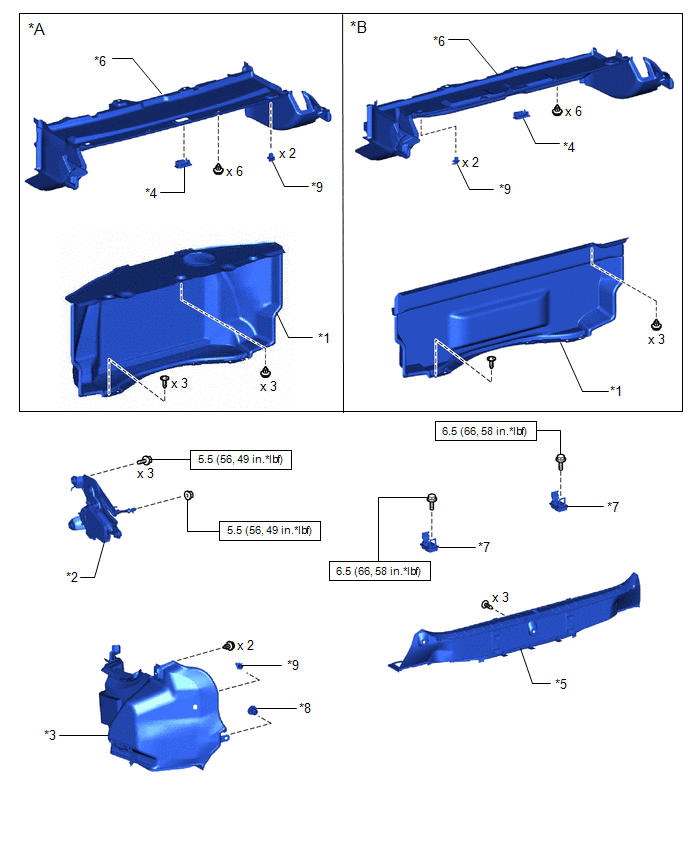

Fig 2: Trunk Lid Actuator Replacement Components With Torque Specifications [10/2020 - 11/2021] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Advanced Drive | *B | w/ Advanced Drive |
| *1 | FRONT LUGGAGE COMPARTMENT TRIM COVER | *2 | LUGGAGE CLOSER MOTOR ASSEMBLY |
| *3 | LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH | *4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *5 | REAR FLOOR FINISH PLATE | *6 | REAR LUGGAGE COMPARTMENT TRIM COVER |
| *7 | ROPE HOOK ASSEMBLY | *8 | GROMMET |
| *9 | ROPE HOOK | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
