Removal [10/2017 - 09/2018]: Procedure
- PRECAUTION WARNING:
Be sure to read Precaution thoroughly before servicing.
Refer to PRECAUTION [10/2017 - 10/2020]
NOTE:After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [10/2017 - 09/2019]
- REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 24
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 3
WARNING:- After disconnecting the cable from the negative (-) auxiliary battery terminal, wait for at least 90 seconds to start the operation.
- If the airbag deploys for any reason, it may cause a serious accident.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2017 - 09/2018]
- REMOVE INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 7
- REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 14
- REMOVE INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 11
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 21
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
Refer to PROCEDURE - Step 4
- REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 9
- REMOVE GLOVE COMPARTMENT DOOR PAD PLATE
Refer to PROCEDURE - Step 29
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 30

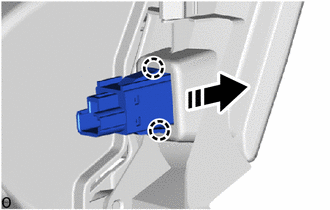

- REMOVE LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY
