Removal [10/2020 - 11/2021]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2020 - 11/2021]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  4. REMOVE REAR BUMPER COVER

    Refer to REMOVAL [10/2020 - 11/2021]

  5. REMOVE KICK DOOR CONTROL BRACKET (w/o Advanced Drive)
    1. Disconnect the connector and detach the clamp.
      NOTE:

      Do not touch the terminal of the kick door control sensor connector.

      GTY777588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws.
      GTY819144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Clip
    3. Remove the 3 clips.
    4. Detach the claw and remove the kick door control bracket together with the kick door control sensor as shown in the illustration.
      GTY824724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  6. REMOVE KICK DOOR CONTROL BRACKET (w/ Advanced Drive)
    1. Disconnect the connector and detach the clamp.
      GTY966105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw.
      GTY966106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the clamp.

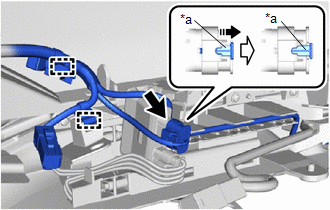

      GTY965940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock
      Slide Direction
    4. Slide the lock as shown in the illustration and disconnect the connector.
      NOTE:

      Do not touch the terminal of the kick door control sensor connector.

    5. Disconnect the connector.

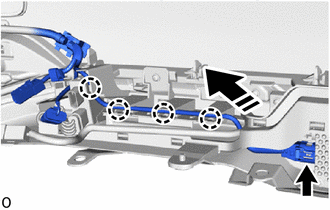

      GTY966272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    6. Detach the claws and pull off the No. 3 luggage room wire from the kick door control bracket as shown in the illustration.
    7. Detach the clamp.
      GTY966050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Screw
      Clip - -
    8. Remove the 2 clips.
    9. Remove the 4 screws and kick door control bracket together with the kick door control sensor as shown in the illustration.

      HINT:

      Remove while passing through the wire harness of the rear LiDAR advanced drive sensor assembly.

  7. REMOVE KICK DOOR CONTROL SENSOR (w/o Advanced Drive)
    1. Detach the claw and guide and disconnect the antenna cable in the order shown in the illustration.
      Fig 1: Kick Door Control Sensor (W/O Advanced Drive) Detachment Sequence
      GTY829040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and disconnect the blue wire and black wire from the kick door control bracket.
      NOTE:
      • Do not pull strongly on the wire.
      • Do not twist the wire.
      GTY829716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Blue Wire
      *b Black Wire
    3. Remove the screw.
      GTY792993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    4. Detach the guide and remove the kick door control sensor from the kick door control bracket in the direction indicated by the arrow shown in the illustration.
      NOTE:
      • Do not subject the kick door control sensor to strong impacts or force, and do not drop it.
      • Do not reuse a kick door control sensor which has been subjected to an impact or dropped.
  8. REMOVE KICK DOOR CONTROL SENSOR (w/ Advanced Drive)
    1. Detach the claw and guide and disconnect the antenna cable in the order shown in the illustration.
      Fig 2: Kick Door Control Sensor (W/ Advanced Drive) Detachment Sequence
      GTY965905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and disconnect the red wire and black wire from the kick door control bracket.
      NOTE:
      • Do not pull strongly on the wire.
      • Do not twist the wire.

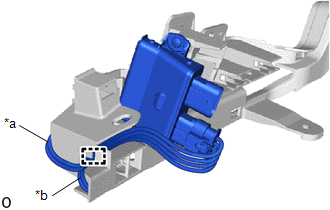

      GTY966145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Red Wire
      *b Black Wire
    3. Remove the screw.

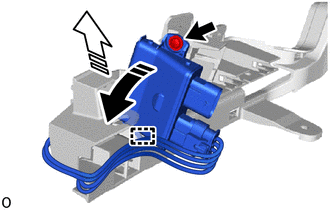

      GTY966333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    4. Detach the guide and remove the kick door control sensor from the kick door control bracket in the direction indicated by the arrow shown in the illustration.
      NOTE:
      • Do not subject the kick door control sensor to strong impacts or force, and do not drop it.
      • Do not reuse a kick door control sensor which has been subjected to an impact or dropped.
