Components [10/2017 - 10/2020]

Fig 1: Kick Sensor Replacement Components With Torque Specifications [10/2017 - 10/2020] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NEGATIVE AUXILIARY BATTERY TERMINAL	*2	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

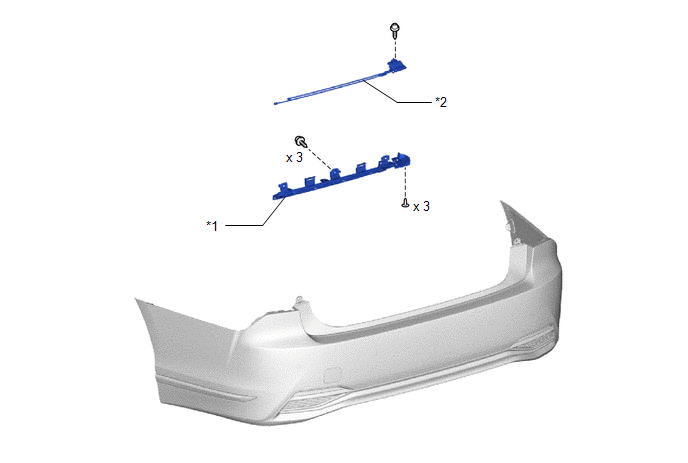

Fig 2: Kick Sensor Replacement Components [10/2017 - 10/2020] (2 Of 2)

Callout	Description	Callout	Description
*1	KICK DOOR CONTROL BRACKET	*2	KICK DOOR CONTROL SENSOR
